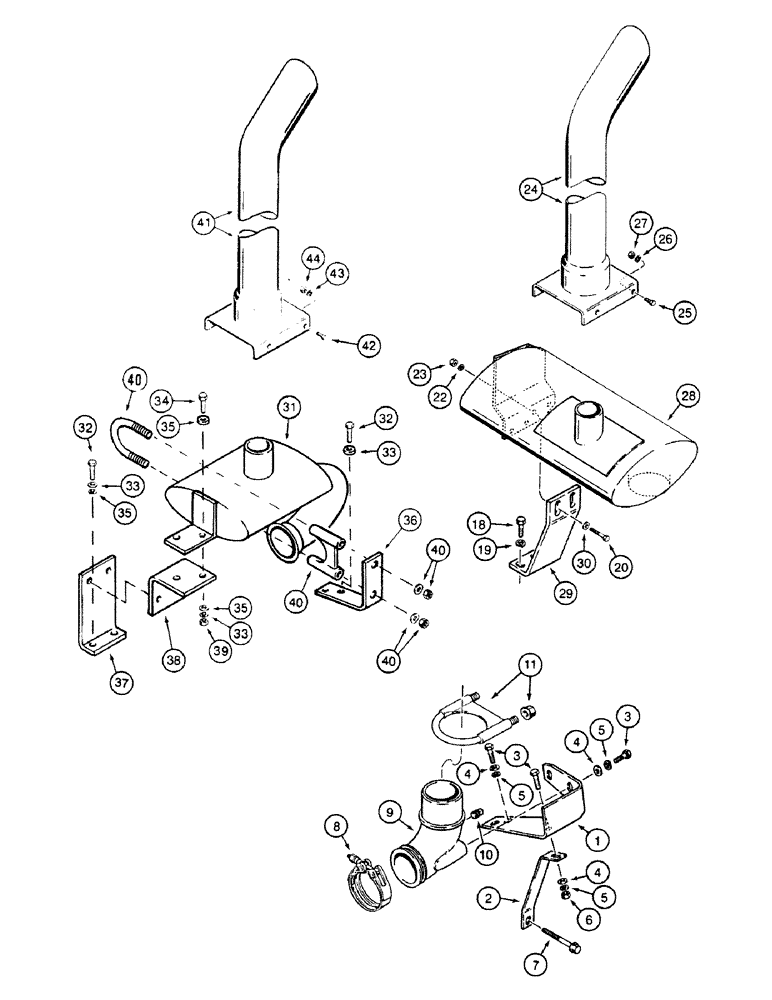

Запчасти Case 580SK (2-18) - EXHAUST SYSTEM, WITH TURBOCHARGER (02) - ENGINE

123244A1

PACKAGE

KIT Consists Of : 1 - 7,9 - 20,22,23,28 - 30, Serial Range: -JJH0014175

1шт.

1

L114429

SUPPORT

BRACKET, Serial Range: -JJH0014175

1шт.

2

L115129

SUPPORT

BRACE, Serial Range: -JJH0014175

1шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

, Serial Range: -JJH0014175

5шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10 x 21 x 2 mm, Serial Range: -JJH0014175

5шт.

5

892-11010

LOCK WASHER,M10

, Serial Range: -JJH0014175

5шт.

6

825-1410

NUT,M10, Cl 8

, Serial Range: -JJH0014175

1шт.

7

844-10080

BOLT,Hvy Hex, M10 x 80mm, Cl 8.8

BOLT M10 x 80 mm, Serial Range: -JJH0014175

1шт.

8

A170467

CLAMP,72mm ID

, Serial Range: -JJH0014175

1шт.

9

A173795

ELBOW

, Serial Range: -JJH0014175

1шт.

10

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

, Serial Range: -JJH0014175

1шт.

11

A189265

CLAMP,80.5mm ID

Clamp, Serial Range: -JJH0014175

1шт.

18

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

, Serial Range: -JJH0014175

1шт.

19

892-11010

LOCK WASHER,M10

, Serial Range: -JJH0014175

1шт.

20

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

, Serial Range: -JJH0014175

2шт.

22

892-11010

LOCK WASHER,M10

, Serial Range: -JJH0014175

2шт.

23

825-1410

NUT,M10, Cl 8

, Serial Range: -JJH0014175

2шт.

24

E49876

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST Chrome, Serial Range: -JJH0014175

1шт.

24

D136087

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST, Serial Range: -JJH0014175

1шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

, Serial Range: -JJH0014175

4шт.

26

492-11031

LOCK WASHER,5/16"

, Serial Range: -JJH0014175

4шт.

27

425-105

NUT,5/16"-18, G5

, Serial Range: -JJH0014175

4шт.

28

A184890

MUFFLER

, Serial Range: -JJH0014175

1шт.

29

A189275

SUPPORT

BRACKET, Serial Range: -JJH0014175

1шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

, Serial Range: -JJH0014175

2шт.

31

MUFFLER Order : 123244A1, Start Serial: JJH0014176

1шт.

32

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

, Start Serial: JJH0014176

4шт.

33

892-11010

LOCK WASHER,M10

, Start Serial: JJH0014176

8шт.

34

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

, Start Serial: JJH0014176

4шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

, Start Serial: JJH0014176

10шт.

36

E49689

SUPPORT

BRACKET, Start Serial: JJH0014176

1шт.

37

E49687

SUPPORT

BRACKET, Start Serial: JJH0014176

1шт.

38

E49688

SUPPORT

BRACKET, Start Serial: JJH0014176

1шт.

39

825-1410

NUT,M10, Cl 8

, Start Serial: JJH0014176

4шт.

40

A62874

CLAMP

, Start Serial: JJH0014176

1шт.

41

E49876

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST Chrome, Start Serial: JJH0014176

1шт.

41

D136087

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST, Start Serial: JJH0014176

1шт.

42

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

, Start Serial: JJH0014176

4шт.

43

492-11031

LOCK WASHER,5/16"

, Start Serial: JJH0014176

4шт.

44

425-105

NUT,5/16"-18, G5

, Start Serial: JJH0014176

4шт.
