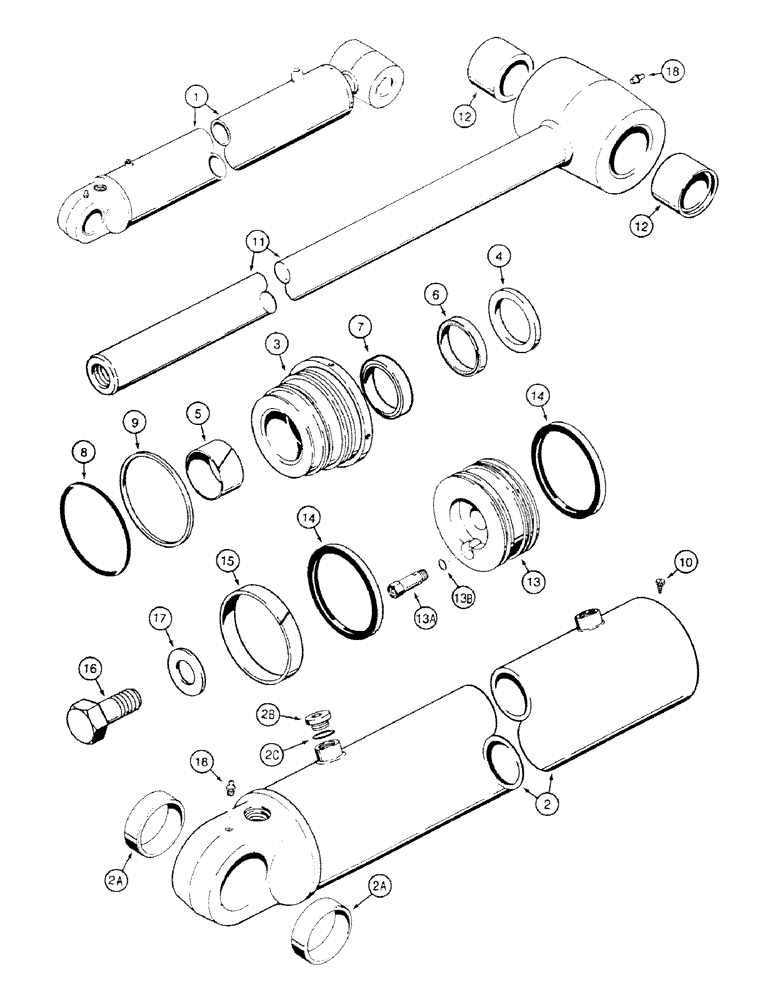

Запчасти Case 580SK (8-370) - BACKHOE BOOM CYLINDER (08) - HYDRAULICS

1

1542916C1

CYLINDER ASSY.

127 x 843 mm, Serial Range: JJH0014065-JJH0046137

1шт.

1

1543391C1

CYLINDER ASSY.

, Start Serial: JJH0046138

1шт.

2

1542636C1

TUBE,126.87 mm ID, 1069.3 mm Length

TUBE, Serial Range: JJH0014065-JJH0046137

1шт.

2

132519A1

TUBE,126.77mm Bore Dia

TUBE, Start Serial: JJH0046138

1шт.

2a

D144421

BUSHING

2шт.

2b

86625138

PLUG,7/18" - 14

With 2C

1шт.

2c

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

1542917C1

GLAND

ASSY Consists of : 3 - 9

1шт.

3

GLAND

1шт.

4

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

Part of seals package P/N 1542919C1

1шт.

5

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

1шт.

Part of seals package P/N 1542919C1

1шт.

1542877C1

SEAL KIT,57.2mm Rod

With 6,7

1шт.

Part of seals package P/N 1542919C1

1шт.

6

SEAL

1шт.

7

SEAL

1шт.

8

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

Part of seals package P/N 1542919C1

1шт.

9

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

Part of seals package P/N 1542919C1

1шт.

10

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

No.8 x 10 mm

1шт.

11

1542638C1

PISTON ROD

57 mm With : 12

1шт.

12

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

2шт.

13

1346018C1

JACK PISTON

1шт.

13a

1958028C1

VALVE

ASSY With : 13B

1шт.

14

G110269

SEAL,112.5mm ID x 126.88mm OD x 7.29mm Thk

2шт.

Part of seals package P/N 1542919C1

1шт.

15

G102090

RING,127mm OD, Ext

1шт.

Part of seals package P/N 1542919C1

1шт.

16

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

17

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

1-1/4"

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1542919C1

SEAL KIT

Includes: Ref. 4, 5, 1542877C1, 8, 9, 14 and 15

1шт.

13b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
