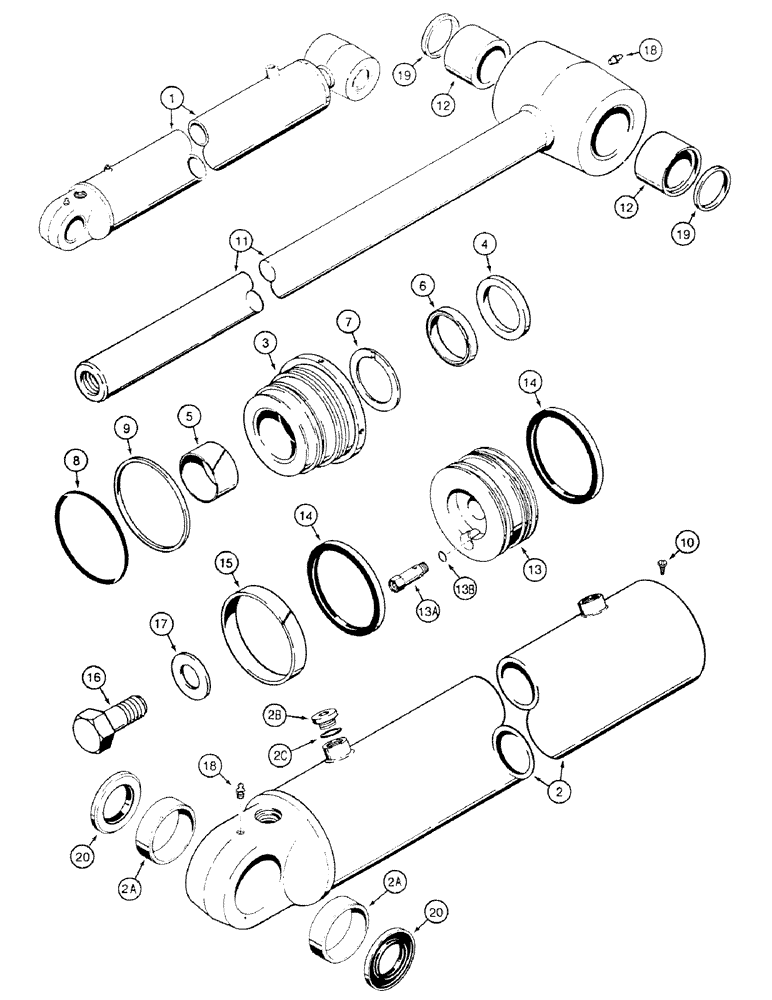

Запчасти Case 580SK (8-368) - BACKHOE BOOM CYLINDER, UP TO S/N JJH0014064 (08) - HYDRAULICS

1

1346217C1

CYLINDER ASSY.

127 x 843 mm With : 2 - 20

1шт.

G110583

KIT

Seal Consists of : 4 - 8,14,15

1шт.

2

1346015C1

TUBE,1069 mm Length

With : 2A,2B,2C

1шт.

2a

D144421

BUSHING

2шт.

2b

86625138

PLUG,7/18" - 14

With 2C

1шт.

2c

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

G110575

GLAND

ASSY Consists of : 3 - 9

1шт.

3

GLAND

1шт.

4

WIPER

1шт.

5

BUSHING

1шт.

6

SEAL

1шт.

7

SEAL

1шт.

8

O RING

1шт.

9

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

11

1346224C1

PISTON ROD

57 mm Dia With : 12

1шт.

12

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

2шт.

13

1346018C1

JACK PISTON

1шт.

13a

1958028C1

VALVE

ASSY Relief With : 13B

1шт.

14

G110269

SEAL,112.5mm ID x 126.88mm OD x 7.29mm Thk

2шт.

15

G102090

RING,127mm OD, Ext

1шт.

16

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

17

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

1-1/4"

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

19

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

2шт.

20

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

2шт.

13b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
