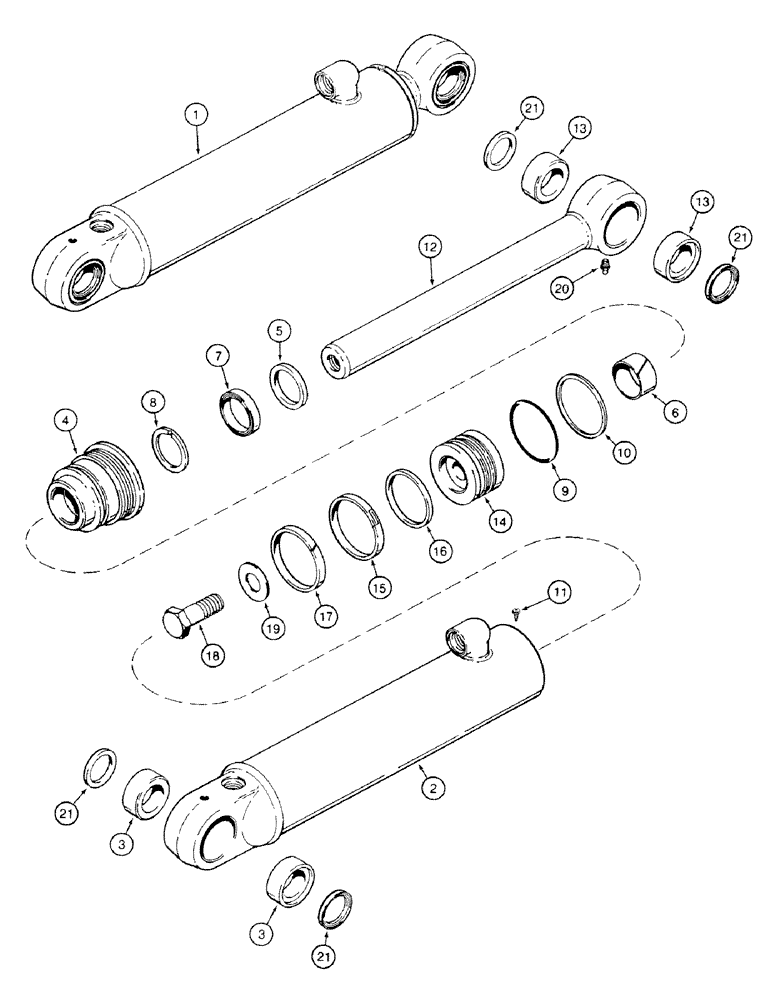

Запчасти Case 580SK (8-364) - SWING CYLINDERS, INTEGRAL BACKHOE (08) - HYDRAULICS

1

1971702C4

CYLINDER ASSY.

89mm x 305 mm With : 2 - 21

2шт.

1543266C1

SEAL KIT

Consists of : 5 - 10,15,16,17

1шт.

2

1971704C2

TUBE,93.42mm Bore Dia

With : 3

1шт.

3

1542668C1

BUSHING,40.19mm ID x 56.68mm OD x 24mm L

2шт.

1971707C1

CYLINDER END CAP

GLAND ASSY Consists of : 4 - 10

1шт.

4

GLAND

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

1шт.

8

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

1шт.

9

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

1978061C3

PISTON ROD

ASSY With : 13

1шт.

13

1542668C1

BUSHING,40.19mm ID x 56.68mm OD x 24mm L

2шт.

14

G110110

PISTON

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

19

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

3/4"

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

21

D127833

SEAL

4шт.
