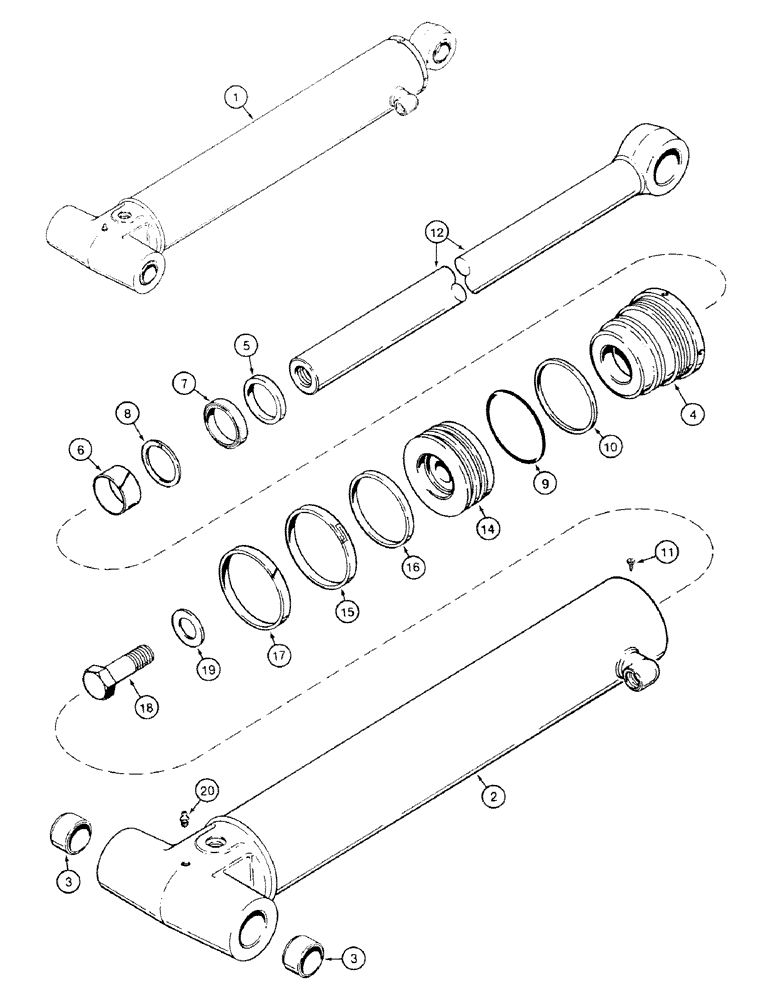

Запчасти Case 580SK (8-360) - STABILIZER CYLINDERS, INTEGRAL BACKHOE (08) - HYDRAULICS

1

G110672

CYLINDER ASSY.

108 x 553 mm Right

1шт.

1

G110673

CYLINDER ASSY.

108 x 553 mm Left With : 2 - 20

1шт.

G110537

KIT

Seal Consists of : 5 - 10,15,16,17

1шт.

2

G110512

HYD TUBE,107.82 mm ID x 780 mm L

Right

1шт.

2

G110513

HYD TUBE,107.82 mm ID x 780 mm L

Left With : 3

1шт.

3

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

2шт.

G110520

GLAND

ASSY Consists of : 4 - 10

1шт.

4

GLAND

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

1шт.

8

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

1шт.

9

A27817

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

1978060C1

PISTON ROD

ASSY 51 mm dia

1шт.

14

G110522

PISTON

1шт.

15

G110531

SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk

1шт.

16

G110529

RING

1шт.

17

G110530

RING,108mm OD, Ext

1шт.

18

28-1648

BOLT,Hex, 1" - 14 x 3", Gr 8

1" x 76 mm

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1"

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
