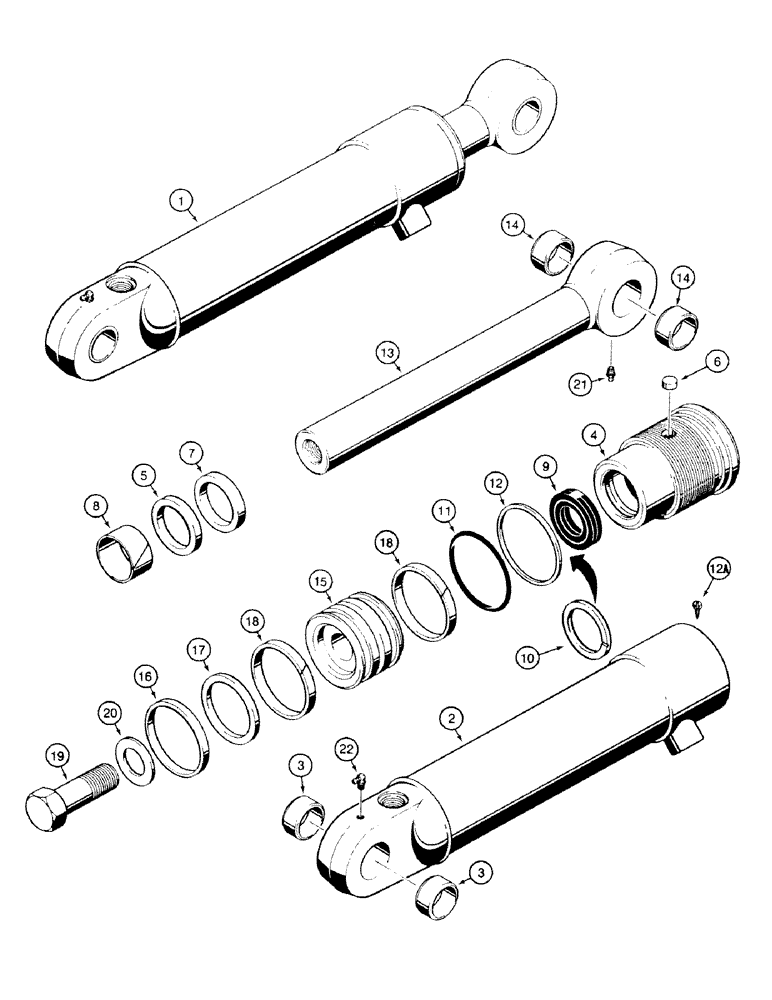

Запчасти Case 580SK (8-356) - LOADER CLAM CYLINDERS (08) - HYDRAULICS

1

G101190

CYLINDER ASSY.

Right, Serial Range: -JJH0046197

1шт.

1

87454017R

REMAN-HYD CYLINDER

580SK LOADER BACKHOE EU, Right, Serial Range: -JJH0046197, Reman for New PN G101190

1шт.

1

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

1

1346189C1

CYLINDER ASSY.

Right, Start Serial: JJH0046198

1шт.

1

87454017R

REMAN-HYD CYLINDER

580SK LOADER BACKHOE EU, Right, Start Serial: JJH0046198, Reman for New PN 1346189C1

1шт.

1

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

1

G101191

CYLINDER ASSY.

Left With : 2 - 12A,13 - 22, Serial Range: -JJH0046197

1шт.

1

1346190C1

CYLINDER ASSY.

Left With : 2B - 12A,13B - 22, Start Serial: JJH0046198

1шт.

2

G32305

HYD TUBE,435.1 mm L

Right With : 3

1шт.

2b

1346191C1

TUBE

Right

1шт.

2

G32304

HYD TUBE

Left With : 3

1шт.

2b

1346192C1

TUBE

Left

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

4

G104240

GLAND

ASSY Use With : G109190/G101191 Consists of : 5 - 12

1шт.

4

G109884

CYLINDER END CAP

GLAND Use With : 1346189C1/1346190C1

1шт.

5

RING

1шт.

6

G102569

PLUG

1шт.

1543262C1

SEAL KIT

Use With : G109190/G101191 Consists of : 7,8,11,12,16,17,18

1шт.

1543267C1

SEAL KIT

Use with 1346189C1/1346190C1; Consists of 7,8,11B,12B,16,17,18

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

9

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

Severe Temperatures

1шт.

9

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

1шт.

10

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

1шт.

11

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

11b

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

12

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

12b

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

12a

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

13

G33800

PISTON ROD

ASSY 44 mm Dia With : 14

1шт.

13b

1346195C1

PISTON ROD

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

15

G100704

PISTON

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

2шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1"

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.
