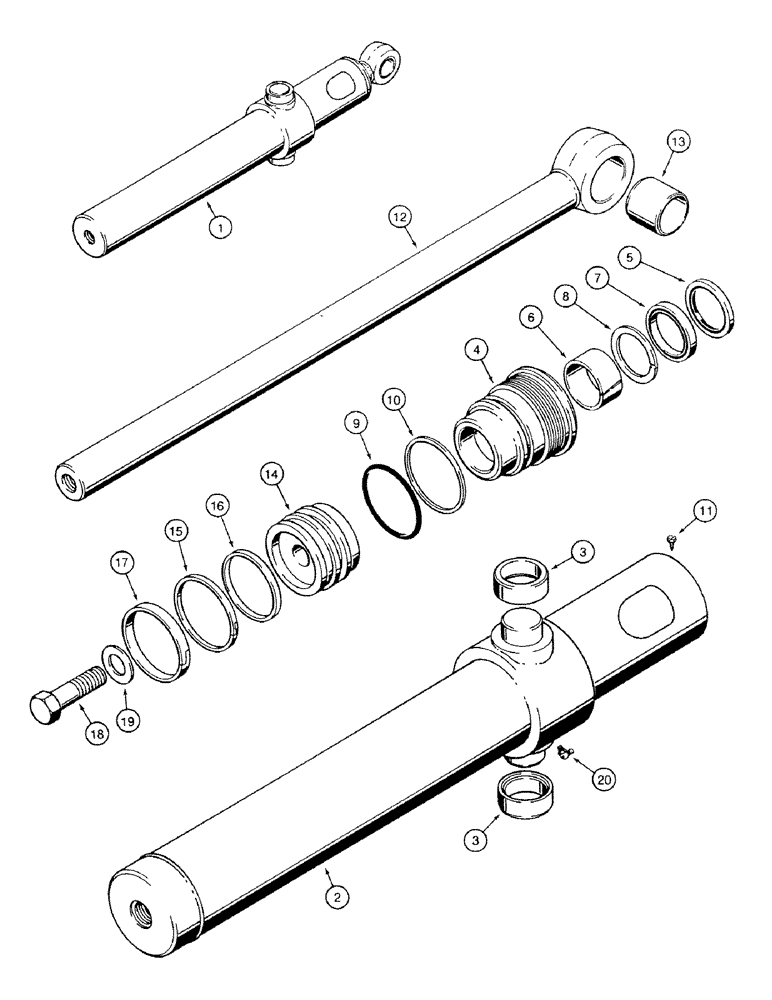

Запчасти Case 580SK (8-354) - LOADER BUCKET CYLINDERS (08) - HYDRAULICS

1

G108486

CYLINDER ASSY.

Right With : 2 - 20, Serial Range: -JJH0046190

1шт.

1

110306A1

CYLINDER ASSY.

Right Consists of : 2 - 12A,14 - 20, Start Serial: JJH0046191

1шт.

1

G108487

CYLINDER ASSY.

Left With : 2 - 20, Serial Range: -JJH0046190

1шт.

1

110309A1

CYLINDER ASSY.

Left Consists of : 2 - 12A,14 - 20, Start Serial: JJH0046191

1шт.

G110050

KIT

PACKAGE Seals Consists of : 5 - 10,15,16,17

1шт.

2

G108508

TUBE,76.1 mm ID x 76.2 mm DIA x 695 mm L

TUBE Right

1шт.

2

G108509

TUBE,76.1 mm ID x 76.2 mm DIA x 695 mm L

TUBE Left With : 3

1шт.

3

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

2шт.

1542964C1

GLAND

Consists of : 5 - 10

1шт.

4

GLAND

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

RING

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

7

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

1шт.

8

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

1978056C1

PISTON ROD

ASSY With : 13

1шт.

12a

110307A1

PISTON ROD

ASSY

1шт.

13

G108507

BUSHING,40.19mm ID x 47.62mm OD x 38.1mm L

1шт.

14

G108518

PISTON

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

19

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

3/4"

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.
