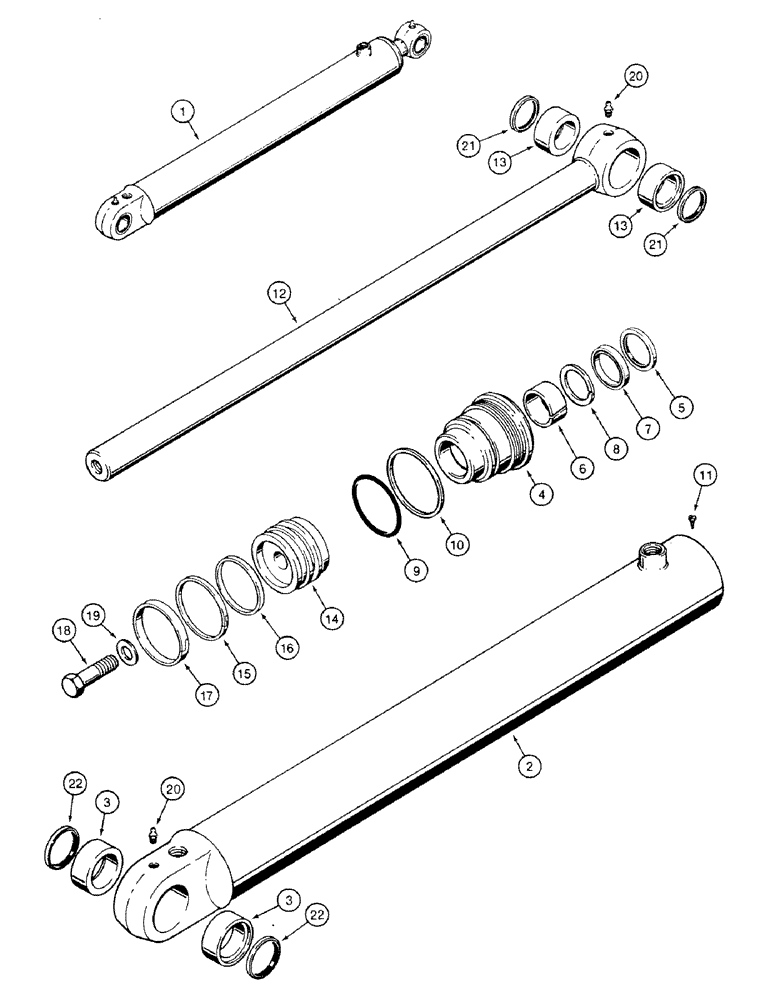

Запчасти Case 580SK (8-352) - LOADER LIFT CYLINDER (08) - HYDRAULICS

1

1980220C2

CYLINDER ASSY.

With : 2 - 22, Serial Range: -JJH0013528

2шт.

1

1542743C1

CYLINDER ASSY.

With : 2 - 22 JJH0013529, Serial Range: -JJH0045940

2шт.

1

110857A1

CYLINDER ASSY.

Consists of : 2A - 12A,14 - 22, Start Serial: JJH00145941

2шт.

1543266C1

SEAL KIT

Seal Consists of : 5 - 10,15,16,17

1шт.

2

1980223C1

HYD TUBE,88.77 mm OD

With : 3

1шт.

2a

1542748C1

TUBE,88.77 mm ID, 937.7 mm Length

1шт.

3

1980335C1

BUSHING,50.19mm ID x 60mm OD x 19mm L

2шт.

1971707C1

CYLINDER END CAP

GLAND ASSY Consists of : 4 - 10

1шт.

4

GLAND

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER Outer

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

1шт.

8

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

1шт.

9

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

1341852C2

PISTON ROD

ASSY Use With : 1542143C1

1шт.

12

1340982C1

PISTON ROD

ASSY Use With : 1980220C2 With : 13

1шт.

12a

110304A1

PISTON ROD

ASSY

1шт.

13

D144895

BUSHING

2шт.

14

G110110

PISTON

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

19

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

3/4"

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

21

D127833

SEAL

2шт.

22

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

2шт.
