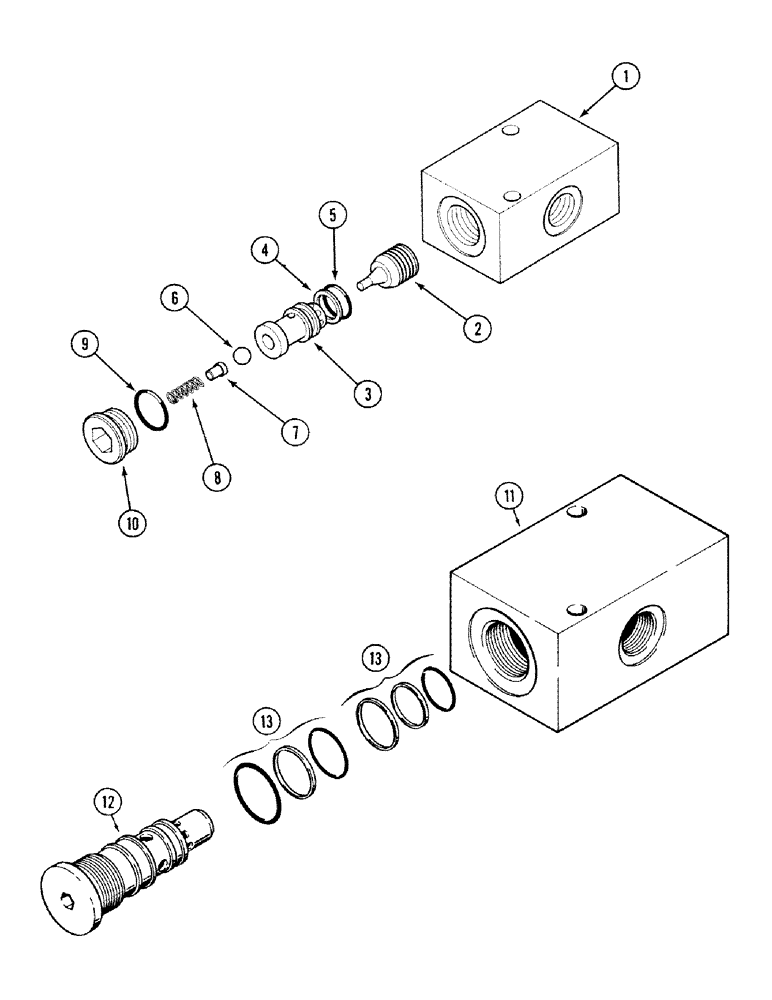

Запчасти Case 580SK (8-350) - VALVE ASSEMBLY, STABILIZER CYLINDER (08) - HYDRAULICS

113911A1

VALVE POPPET

Eljika Consists Of : 1 - 10 See Figure 8-068, Serial Range: -JJH0049647

1шт.

1

BODY

1шт.

114567A1

PACKAGE, REPAIR

Eljika Consists Of : 2 - 9

1шт.

2

114566A1

PISTON

1шт.

3

114565A1

SEAT

1шт.

4

114564A1

WASHER

1шт.

5

114561A1

O-RING

1шт.

6

114559A1

BALL

1шт.

7

114558A1

END FITTING

POPPET

1шт.

8

128777A1

SPRING

1шт.

9

114556A1

O-RING

1шт.

10

PLUG

1шт.

VALVE Laser Consists Of : 11 - 13 Order : 113911A1

1шт.

11

BODY

1шт.

E46546

LOCK VALVE

CARTRIDGE Consists Of : 12,13

1шт.

12

BODY

1шт.

13

E46547

SEAL PACKAGE

Repair Laser

1шт.
