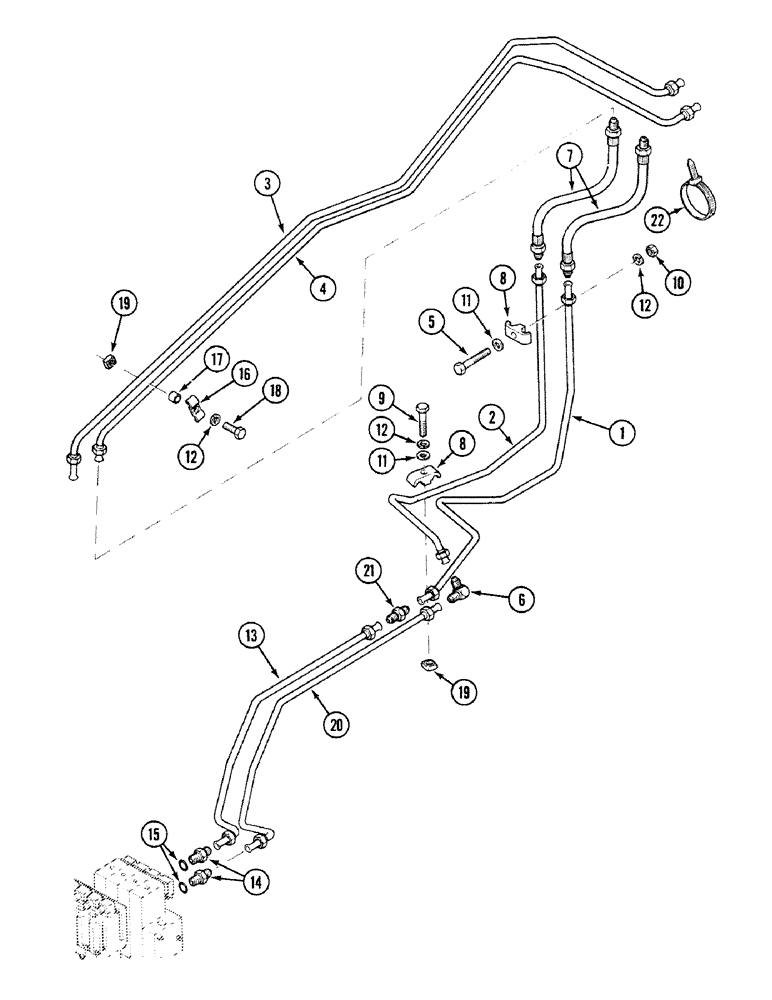

Запчасти Case 580SK (8-348) - LOADER AUXILIARY HYDRAULICS, PRESTIGE VERSION (08) - HYDRAULICS

1

E49544

PIPE

1шт.

2

E49545

PIPE

1шт.

3

D146246

PIPE

ASSY

1шт.

4

D146248

PIPE

ASSY

1шт.

5

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

6

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

UNION 7/8"

1шт.

7

D125995

HOSE,12.7mm ID x 750mm L

2шт.

8

D120613

CLAMP,20mm ID

2шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

495-21044

WASHER,3/8"

(7/16")

2шт.

12

492-11038

LOCK WASHER,3/8"

6шт.

13

E49889

PIPE

1шт.

14

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER With : 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

D143427

CLAMP

4шт.

17

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

4шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

84899

SQUARE NUT,Sq, 3/8"-16, G2

5шт.

20

E49888

PIPE

1шт.

21

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.
