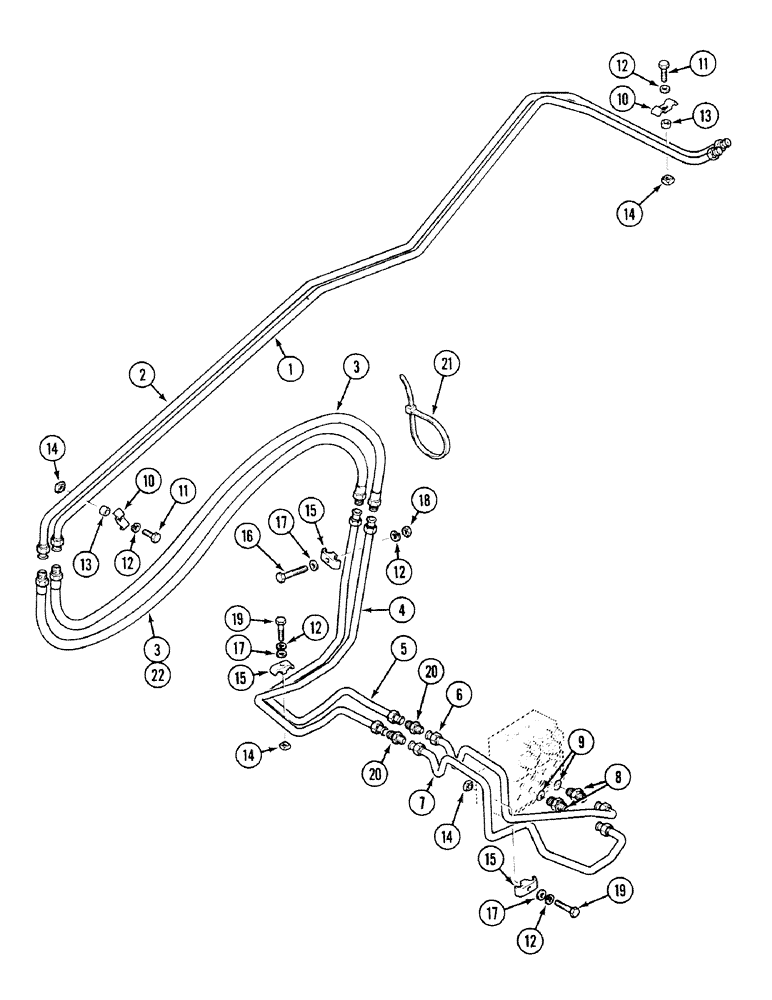

Запчасти Case 580SK (8-346) - LOADER, AUXILIARY HYDRAULICS, SERVOPOWER VERSION, S/N JJH0046382 AND UP (08) - HYDRAULICS

1

D146248

PIPE

ASSY

1шт.

1a

142957A1

PIPE

ASSY, Start Serial: JJH0048585

1шт.

2

D146246

PIPE

ASSY

1шт.

2a

142956A1

PIPE

ASSY, Start Serial: JJH0048585

1шт.

3

D125995

HOSE,12.7mm ID x 750mm L

1шт.

4

D148669

PIPE

ASSY

1шт.

4a

143367A1

PIPE

ASSY, Start Serial: JJH0048585

1шт.

5

D148673

PIPE

ASSY

1шт.

5a

143366A1

PIPE

ASSY, Start Serial: JJH0048585

1шт.

6

111203A1

PIPE

ASSY

1шт.

6a

132701A1

PIPE

ASSY, Start Serial: JJH0048585

1шт.

7

111202A1

PIPE

ASSY

1шт.

7a

132494A1

PIPE

ASSY, Start Serial: JJH0048585

1шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

With : 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

D143427

CLAMP

4шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

12

492-11038

LOCK WASHER,3/8"

7шт.

13

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

4шт.

14

84899

SQUARE NUT,Sq, 3/8"-16, G2

4шт.

15

D120613

CLAMP,20mm ID

3шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

17

495-21044

WASHER,3/8"

3шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

20

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

22

144209A1

HOSE

ASSY

1шт.
