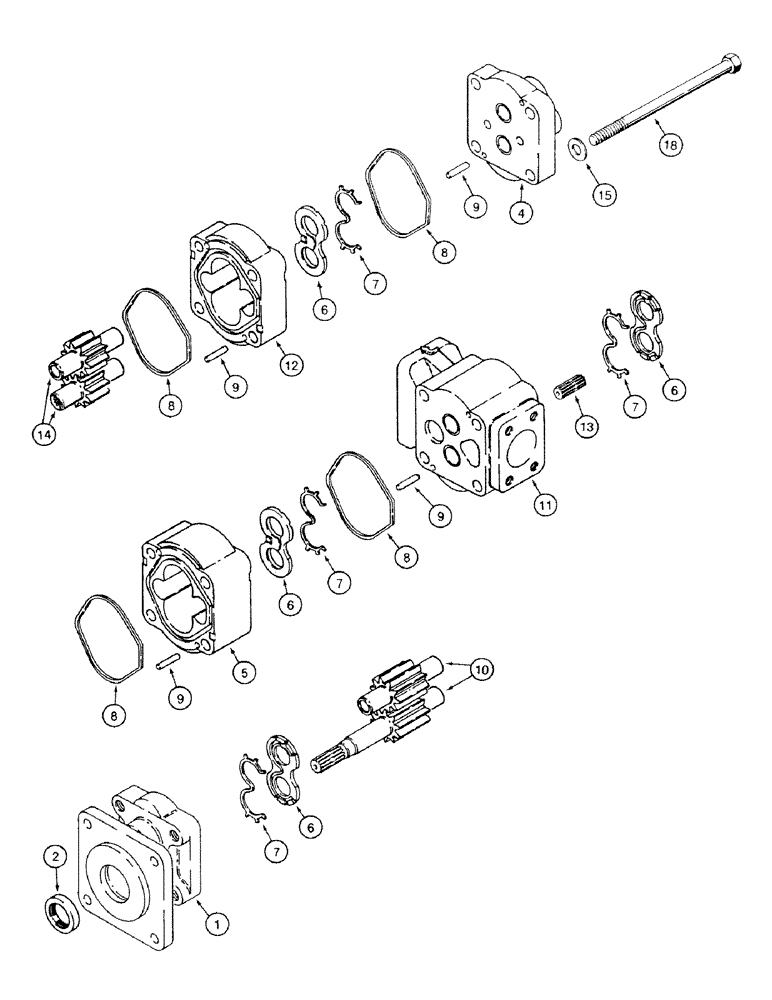

Запчасти Case 580SK (8-344) - EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS

D140801

PUMP, HYDRAULIC

ASSY Consist of : 1 - 18

1шт.

D140801R

REMAN-HYD PUMP

580SK

1шт.

D140801C

CORE-HYDRAULIC PUMP

Return Number

1шт.

112904A1

PACKAGE

Repair Consists Of : 2,6,7,8

1шт.

1

COVER

1шт.

2

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

1шт.

4

COVER

1шт.

5

N14115

HOUSING

1шт.

6

N13582

THRUST PLATE

4шт.

7

N13583

SEAL

RETAINER

4шт.

8

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

Large

4шт.

9

W16323

DOWEL

8шт.

10

GEAR Set

1шт.

11

HOUSING

1шт.

12

N14116

HOUSING

1шт.

13

N13586

SHAFT

1шт.

14

SET Gear

1шт.

15

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

5/8"

4шт.

18

26-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 8

5/8 x 229 mm

4шт.
