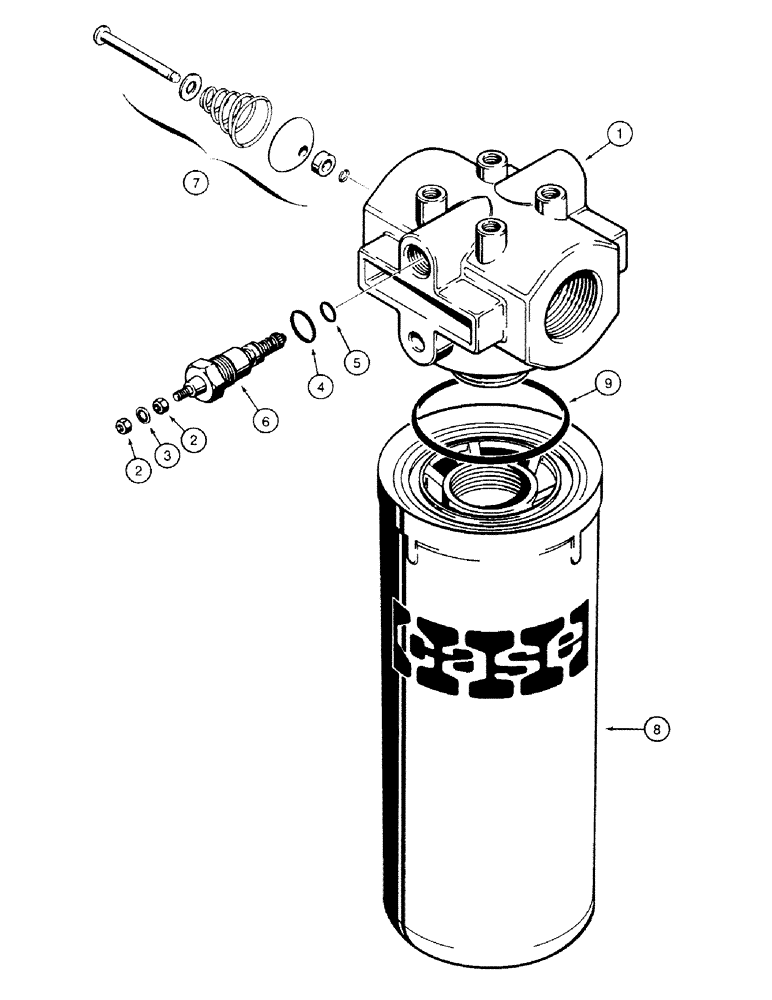

Запчасти Case 580SK (8-340) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

D132933

FILTER ASSY

Consists of : 1 - 9

1шт.

1

HEAD

1шт.

N6755

PRESSURE SWITCH

ASSY Restriction Consists of : 2 - 6

1шт.

N6941

KIT

Restriction Indicator Consists of : 2 - 5

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

193-99

LOCK WASHER,Int Tooth, #10

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

Inner

1шт.

6

INDICATOR

1шт.

7

VALVE

1шт.

1346028C1

HYDRAULIC OIL FILTER

Consists of : 8, 9

1шт.

8

ELEMENT

1шт.

9

N9026

O-RING

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
