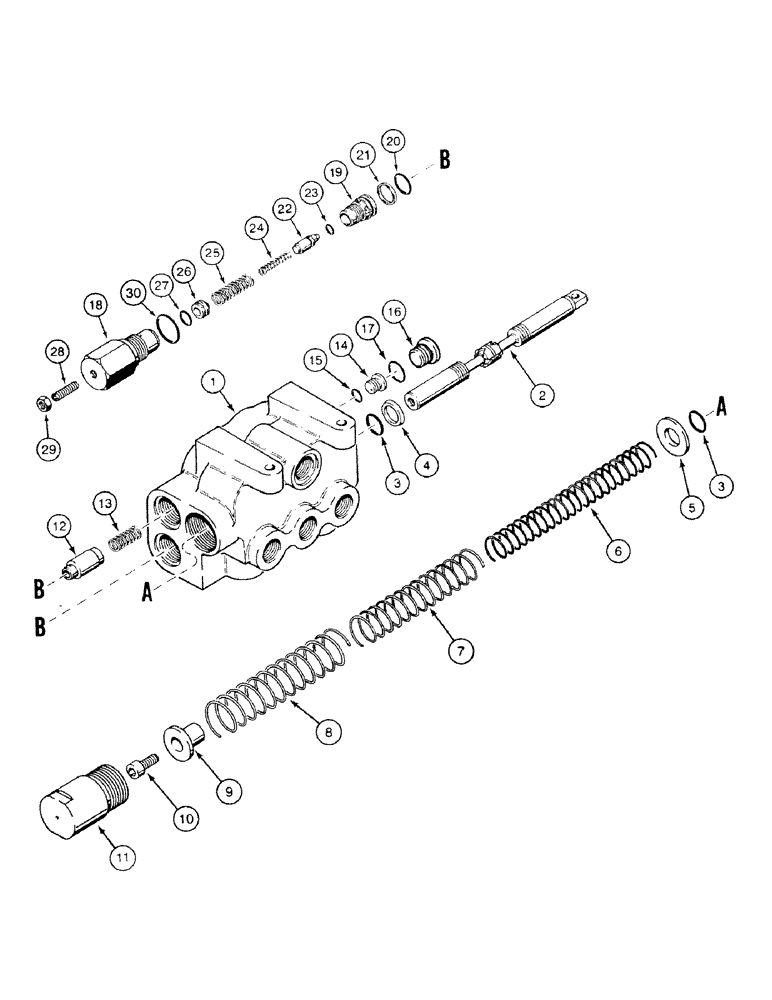

Запчасти Case 580SK (8-338) - BACKHOE SWING SEQUENCE VALVE (08) - HYDRAULICS

1346067C1

VALVE

ASSY Consists of : 1 - 30

1шт.

1

HOUSING

1шт.

2

SPOOL

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

1шт.

5

G108896

O-RING

1шт.

6

G108895

SPRING

Inner

1шт.

7

G108892

SPRING

Centre

1шт.

8

G108891

SPRING

Outer

1шт.

9

G108893

SEAT

1шт.

10

61-612

HEX SOC SCREW,3/8"-16 x 3/4"

3/8 x 19 mm

1шт.

11

G108894

CAP

1шт.

12

G108017

SPOOL

1шт.

13

G107174

SPRING

1шт.

14

9625178

PLUG,9/16" - 18 ORB

With 15

1шт.

16

9841223

PLUG,1-1/16" - 12 ORB

STOP with 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

G110467

VALVE, PRESSURE RELI

EF Consists of : 18 - 30 Order : G110077

1шт.

18

HOUSING

1шт.

19

SEAT

1шт.

20

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

21

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

22

POPPET

1шт.

23

O RING

1шт.

24

SPRING Inner

1шт.

25

SPRING Outer

1шт.

26

PISTON

1шт.

27

O RING

1шт.

28

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

5/16 x 31 mm

1шт.

29

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
