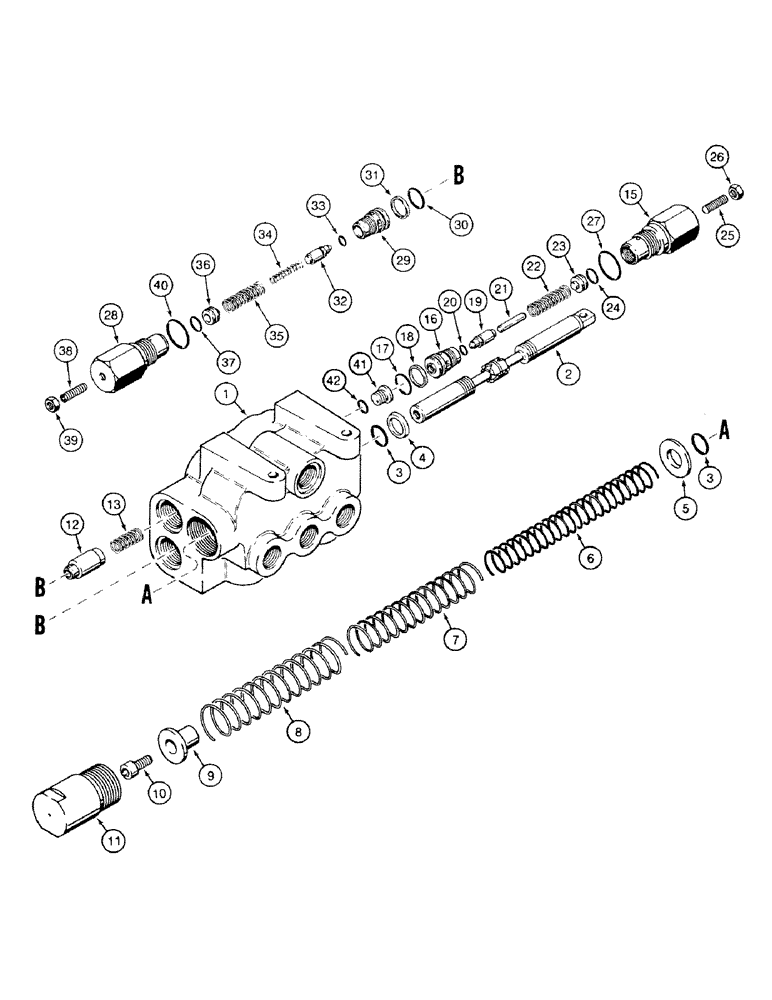

Запчасти Case 580SK (8-334) - BACKHOE SWING SEQUENCE VALVE, SIDESHIFT BACKHOE (08) - HYDRAULICS

G109665

VALVE

ASSY Consists of : 1 - 40

1шт.

1

HOUSING

1шт.

2

SPOOL

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

1шт.

5

G108896

O-RING

1шт.

6

G108895

SPRING

Inner

1шт.

7

G108892

SPRING

Centre

1шт.

8

G108891

SPRING

Outer

1шт.

9

G108893

SEAT

1шт.

10

61-612

HEX SOC SCREW,3/8"-16 x 3/4"

3/8 x 19 mm

1шт.

11

G108894

CAP

1шт.

12

G108017

SPOOL

1шт.

13

G107174

SPRING

1шт.

G110467

VALVE, PRESSURE RELI

EF KIT Consists of : 15 - 27

1шт.

15

HOUSING

1шт.

16

SEAT

1шт.

17

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

18

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

19

POPPET

1шт.

20

O RING

1шт.

21

PIN

1шт.

22

SPRING

1шт.

23

PISTON

1шт.

24

O RING

1шт.

25

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

5/16 x 25 mm

1шт.

26

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

G110077

KIT

Relief Valve Consists of : 28 - 40

1шт.

28

HOUSING

1шт.

29

SEAT

1шт.

30

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

31

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

32

POPPET

1шт.

33

O RING

1шт.

34

SPRING Inner

1шт.

35

SPRING Outer

1шт.

36

PISTON

1шт.

37

O RING

1шт.

38

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

5/16 x 25 mm

1шт.

39

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

41

G108903

PLUG

With : 42

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
