(8-332) - LOADER CONTROL VALVE, NOT FOR PRESTIGE, OUTLET SECTION

Запчасти Case 580SK (8-332) - LOADER CONTROL VALVE, NOT FOR PRESTIGE, OUTLET SECTION (08) - HYDRAULICS

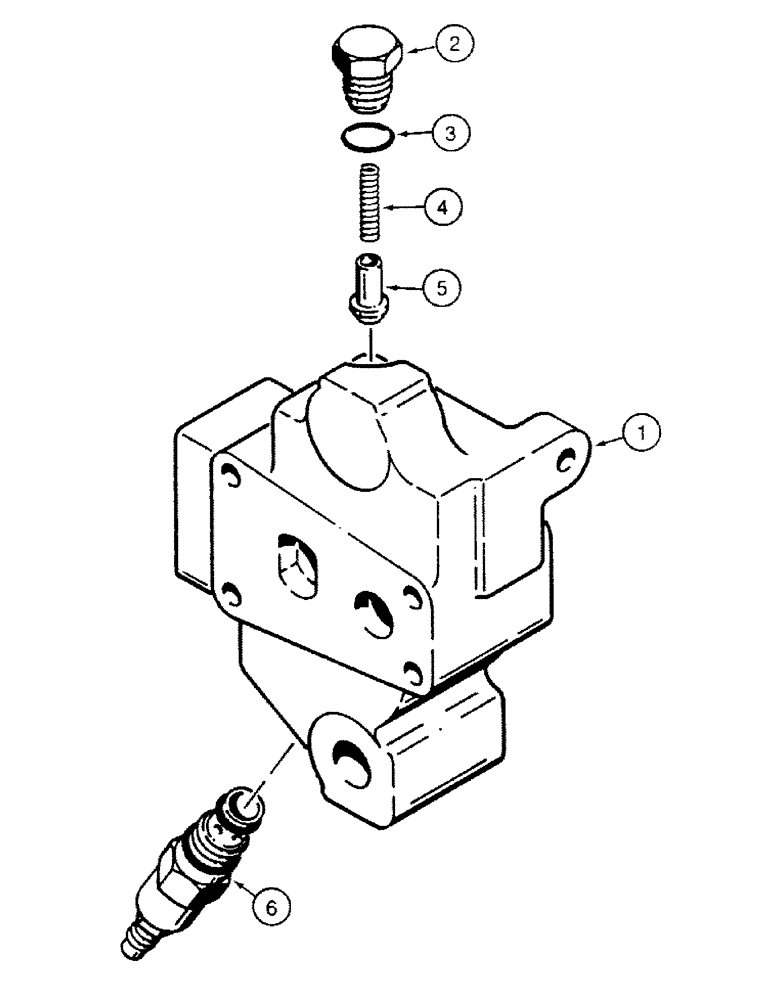

Схема запчастей Case 580SK - (8-332) - LOADER CONTROL VALVE, NOT FOR PRESTIGE, OUTLET SECTION (08) - HYDRAULICS
5
6
3
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1980436C1

ELEMENT

SECTION Consists of : 1 - 6

1шт.

1

1980437C1

ELEMENT

HOUSING

1шт.

2

G109644

PLUG,Hex, 3/4" - 16

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

G109646

SPRING,Compression, 6.35mm OD x 38.35mm L

1шт.

5

G109645

VALVE POPPET

1шт.

6

1980438C1

VALVE

ASSY

1шт.
