(8-330) - LOADER CONTROL VALVE, NOT FOR PRESTIGE, CIRCUIT RELIEF VALVE

Запчасти Case 580SK (8-330) - LOADER CONTROL VALVE, NOT FOR PRESTIGE, CIRCUIT RELIEF VALVE (08) - HYDRAULICS

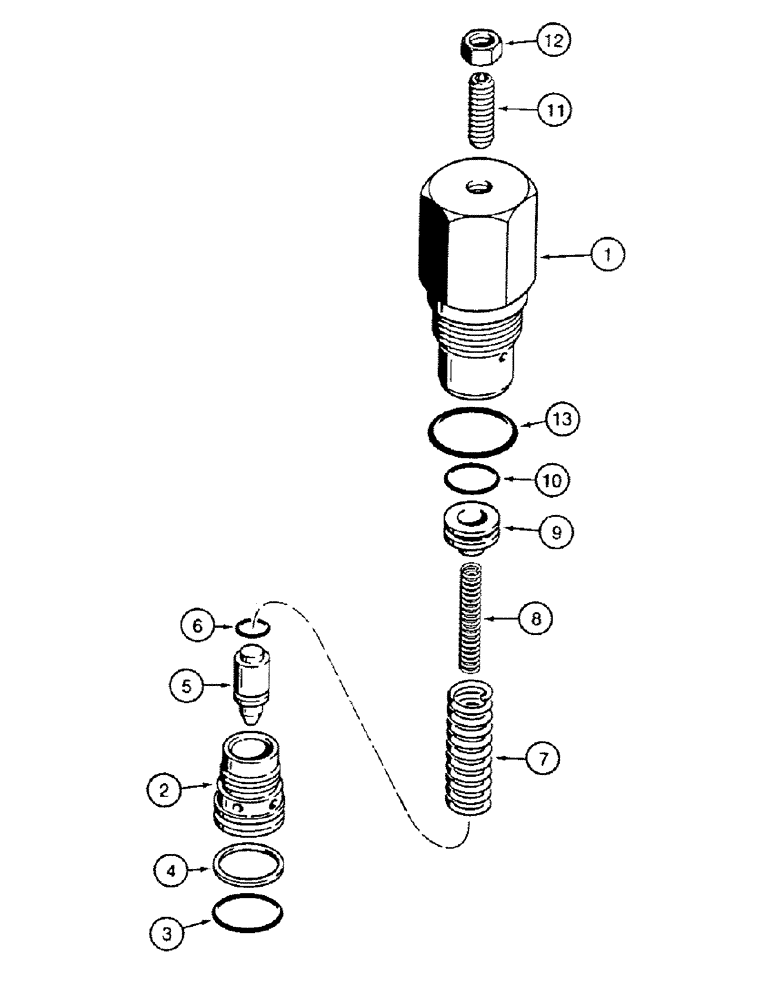

Схема запчастей Case 580SK - (8-330) - LOADER CONTROL VALVE, NOT FOR PRESTIGE, CIRCUIT RELIEF VALVE (08) - HYDRAULICS
11
5
8
10
3
2
12
4
13
7
9
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

G109391

VALVE

Relief Consist of : 1 - 13 Order

2шт.

1

HOUSING

1шт.

2

SEAT

1шт.

3

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

5

POPPET

1шт.

6

O RING

1шт.

7

SPRING Exterior

1шт.

8

SPRING Interior

1шт.

9

PISTON

1шт.

10

O RING

1шт.

11

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

5/16 x 25 mm

1шт.

12

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
