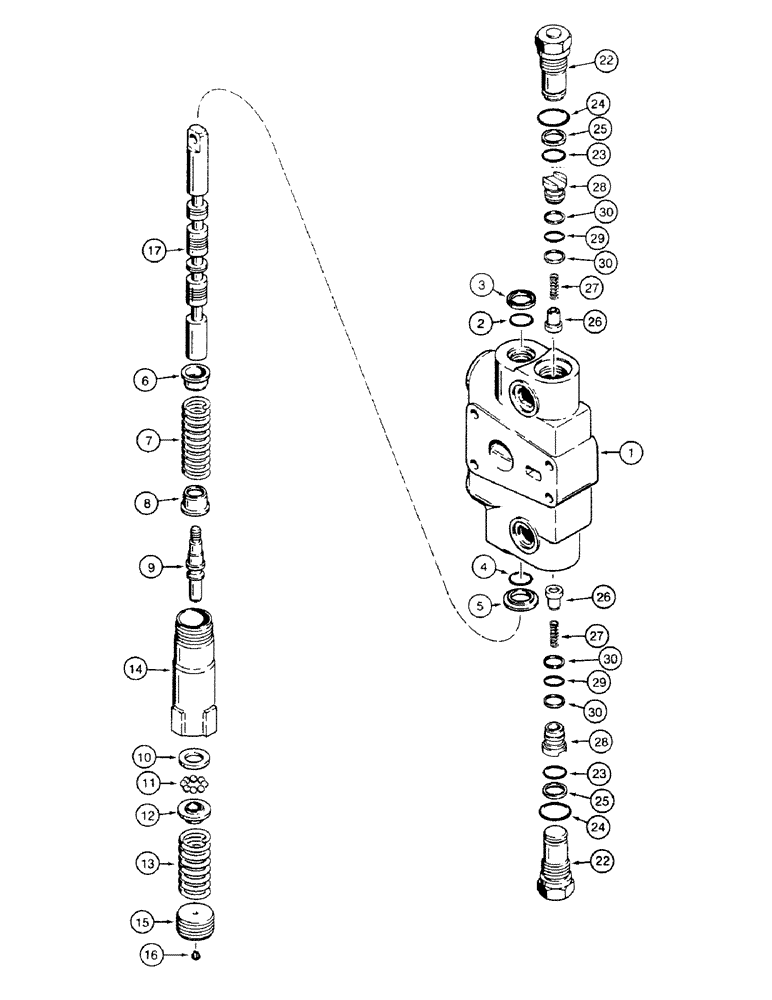

Запчасти Case 580SK (8-326) - LOADER CONTROL VALVE, NOT FOR PRESTIGE, LIFT SECTION (08) - HYDRAULICS

1986591C1

VALVE

SECTION Consists of : 1 - 30

1шт.

1346105C1

SEAL KIT

Consists of : 2,4,23,25,29,30

1шт.

1

HOUSING

1шт.

2

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

3

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

1шт.

SPOOL Consists of : 4 - 17

1шт.

4

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT Upper Small

1шт.

7

1986612C1

SPRING,Compression, 28.575mm OD x 72.74mm L

1шт.

8

G106395

RETAINER,16mm ID, 27.9mm OD

SEAT Lower Large

1шт.

9

G106396

SHAFT,74.68mm L

1шт.

10

G109127

WASHER,17.4mm ID x 28.9mm OD x 3.96mm Thk, MS450

1шт.

11

211-258

BALL

8шт.

12

G106398

RETAINER,16.76mm ID x 29.21mm OD x 6.48mm Thk

1шт.

13

1986568C1

SPRING,Compression, 31.24mm OD x 45.64mm L

1шт.

14

G106425

HOUSING,1-3/8" - 18 x 1-3/8" - 18

1шт.

15

G109384

PLUG,3/8" - 18

1шт.

16

G107780

VALVE, CHECK

1шт.

17

POPPET

1шт.

G33122

PLUG,ORB

Consists of : 22 - 25

2шт.

22

PLUG

1шт.

23

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

1346219C2

PACKAGE

VALVE Load Check Consists of : 26 - 30

2шт.

26

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

1шт.

27

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

1шт.

28

1343708C1

PLUG

1шт.

29

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

30

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

4шт.
