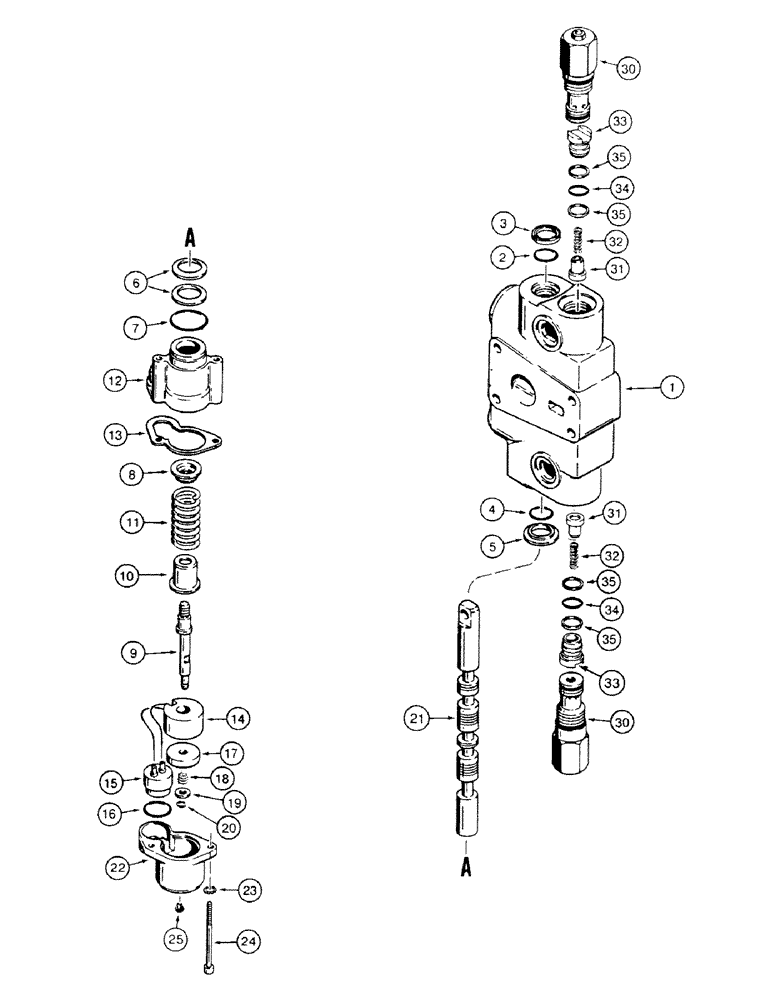

Запчасти Case 580SK (8-322) - LOADER CONTROL VALVE, NOT FOR PRESTIGE, BUCKET SECTION (08) - HYDRAULICS

1986592C1

VALVE

SECTION Consists of : 1 - 35

1шт.

1346105C1

SEAL KIT

Consists of : 2,3,4,34,35

1шт.

1

HOUSING

1шт.

2

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

3

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

O RING

1шт.

1986590C1

COIL

SPOOL Consists of : 4 - 21

1шт.

4

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

6

G106452

SPRING WASHER

Belleville

2шт.

7

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

1шт.

8

G106442

SEAT

Upper

1шт.

9

G107445

SHAFT

1шт.

10

G106441

SEAT

Lower

1шт.

11

1986611C1

SPRING

1шт.

12

G106423

HOUSING

Electrically Controlled

1шт.

13

G106443

GASKET

1шт.

G110079

COIL ASSY.

SPOOL Electrically Controlled Consists of : 14,15

1шт.

14

COIL

1шт.

15

G106450

COIL

CONNECTOR

1шт.

16

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

1шт.

17

G109295

WASHER,6.45mm ID x 29.5mm OD x 7.92mm Thk, MS381

1шт.

18

G107447

SPRING,Compression, 8.38mm OD x 8.64mm L

1шт.

19

A50778

WASHER

1шт.

20

A7111

SNAP RING,#25, Ext

#25, Ext

1шт.

21

SPOOL

1шт.

22

G106424

CAP

Electrically Controlled

1шт.

23

93-41020

LOCK WASHER,Ext Tooth, #10

3/16"

2шт.

24

165-46

HEX SOC SCREW,#10 - 24 x 2 3/4"

No.10 x 70 mm

2шт.

25

G107780

VALVE, CHECK

ASSY Electrically Controlled

1шт.

30

G109391

VALVE

ASSY Relief Valve Order G109449 See Figure 8-330

2шт.

1346219C2

PACKAGE

VALVE ASSY Load Check Consists of : 31 - 35

2шт.

31

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

1шт.

32

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

1шт.

33

1343708C1

PLUG

1шт.

34

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

35

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

4шт.
