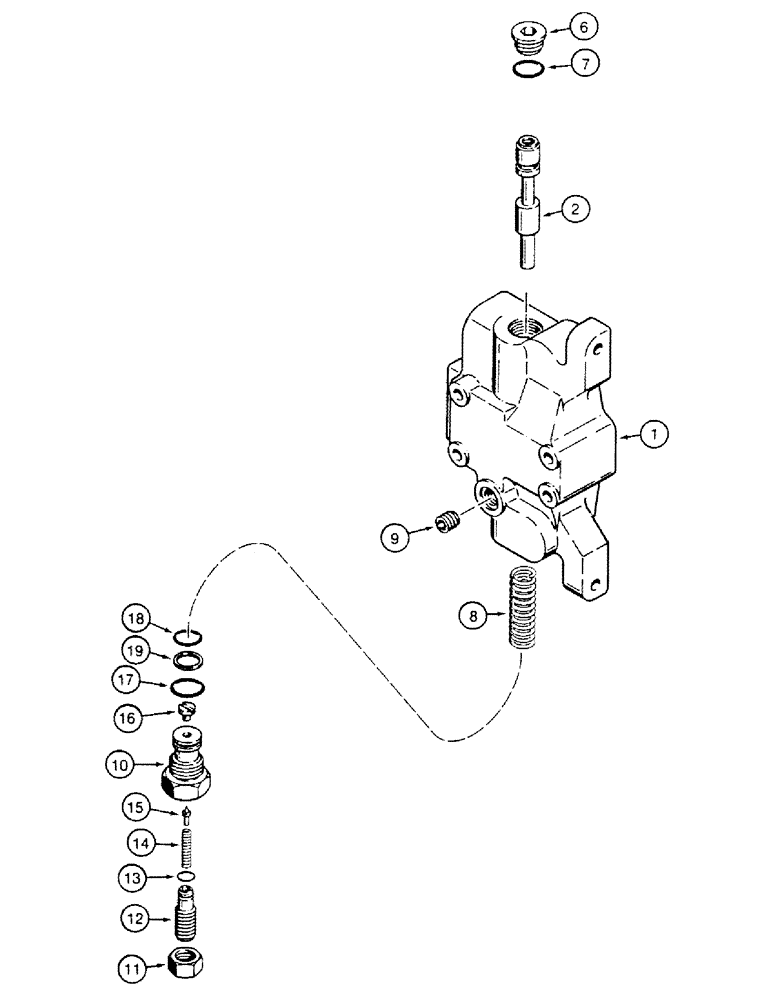

Запчасти Case 580SK (8-320) - LOADER CONTROL VALVE, NOT FOR PRESTIGE, INLET VALVE (08) - HYDRAULICS

1980434C1

VALVE

SECTION Consists of : 1 - 19

1шт.

1

1980435C1

DISTRIBUTOR

HOUSING

1шт.

2

SPOOL

1шт.

6

86625138

PLUG,7/18" - 14

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

G108877

SPRING

1шт.

9

PLUG

1шт.

G108868

VALVE PRESSURE RELIE

Steering Consists of : 10 - 19

1шт.

10

G108866

HOUSING,1-1/16" - 12

1шт.

11

86637932

JAM NUT,Jam, 5/8"-18, G5

5/8"

1шт.

12

G108867

PLUG

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

G109275

SPRING

1шт.

15

G108556

VALVE POPPET

1шт.

16

G108869

SEAT

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.
