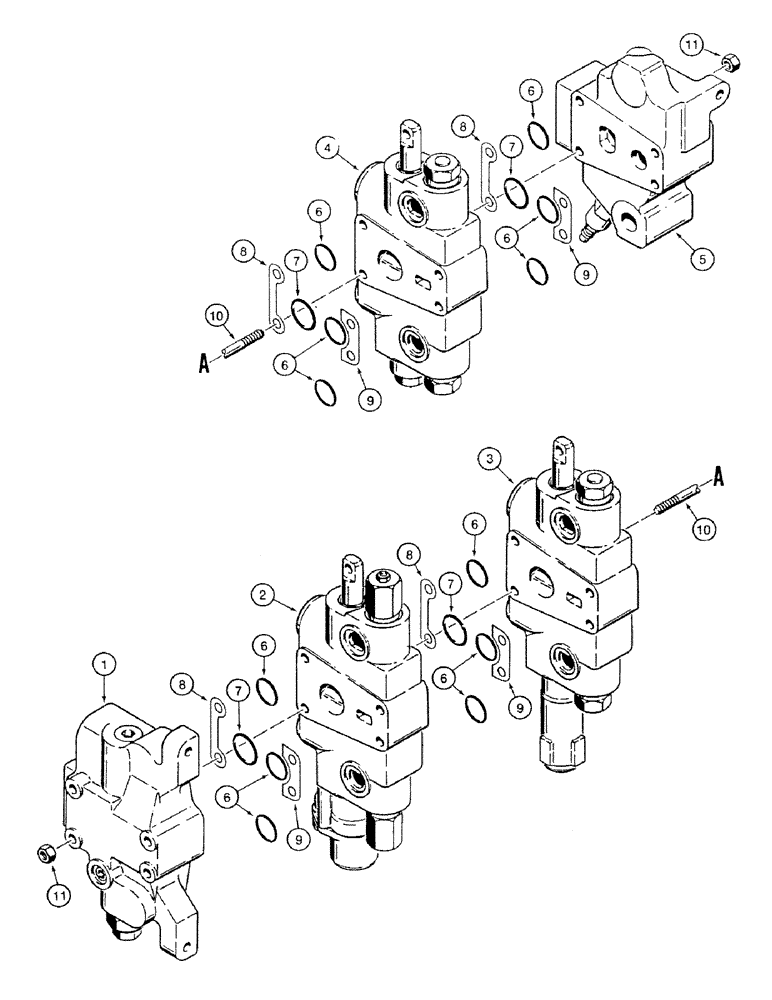

Запчасти Case 580SK (8-318) - LOADER CONTROL VALVE 3 SPOOL, NOT FOR PRESTIGE (08) - HYDRAULICS

1980433C1

DISTRIBUTOR

VALVE ASSY Consists of : 1 - 11

1шт.

1

1980434C1

VALVE

SECTION Inlet See Figure 8-320

1шт.

2

1986592C1

VALVE

SECTION Bucket

1шт.

3

1986591C1

VALVE

SECTION Lift See Figure 8-326

1шт.

4

1986593C1

VALVE

SECTION Loader See Figure 8-328

1шт.

5

1980436C1

ELEMENT

SECTION Outlet See Figure 8-332

1шт.

6

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

12шт.

7

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

4шт.

8

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

4шт.

9

G33965

SHIM,22.86mm OD x 0.06mm Thk

4шт.

10

G108805

STUD

3/8 x 298 mm

4шт.

11

425-106

NUT,3/8"-16, Cl 5

8шт.
