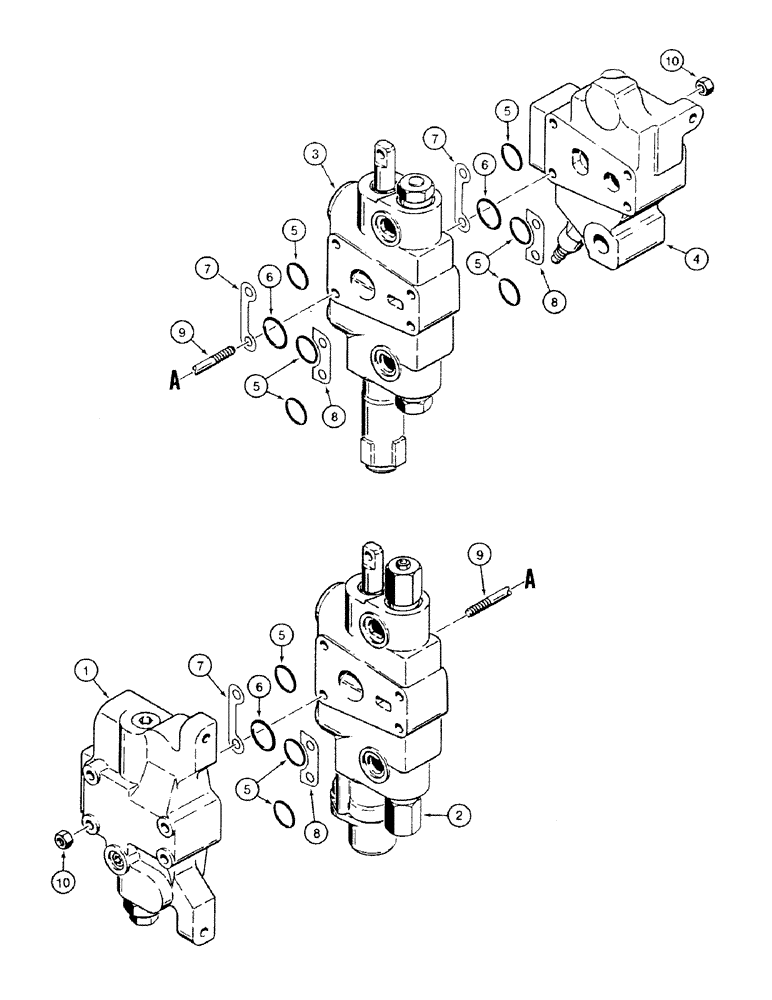

Запчасти Case 580SK (8-316) - LOADER CONTROL VALVE 2 SPOOL, NOT FOR PRESTIGE (08) - HYDRAULICS

1340864C1

VALVE, CONTROL

ASSY Consists of : 1 - 10

1шт.

1

1980434C1

VALVE

SECTION Inlet See Figure 8-320

1шт.

2

1986592C1

VALVE

SECTION Bucket

1шт.

3

1986591C1

VALVE

SECTION Lift See Figure 8-326

1шт.

4

1980436C1

ELEMENT

SECTION Outlet See Figure 8-332

1шт.

5

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

9шт.

6

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

3шт.

7

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

3шт.

8

G33965

SHIM,22.86mm OD x 0.06mm Thk

3шт.

9

G108870

STUD,246.2mm L

3/8"

4шт.

10

425-106

NUT,3/8"-16, Cl 5

8шт.
