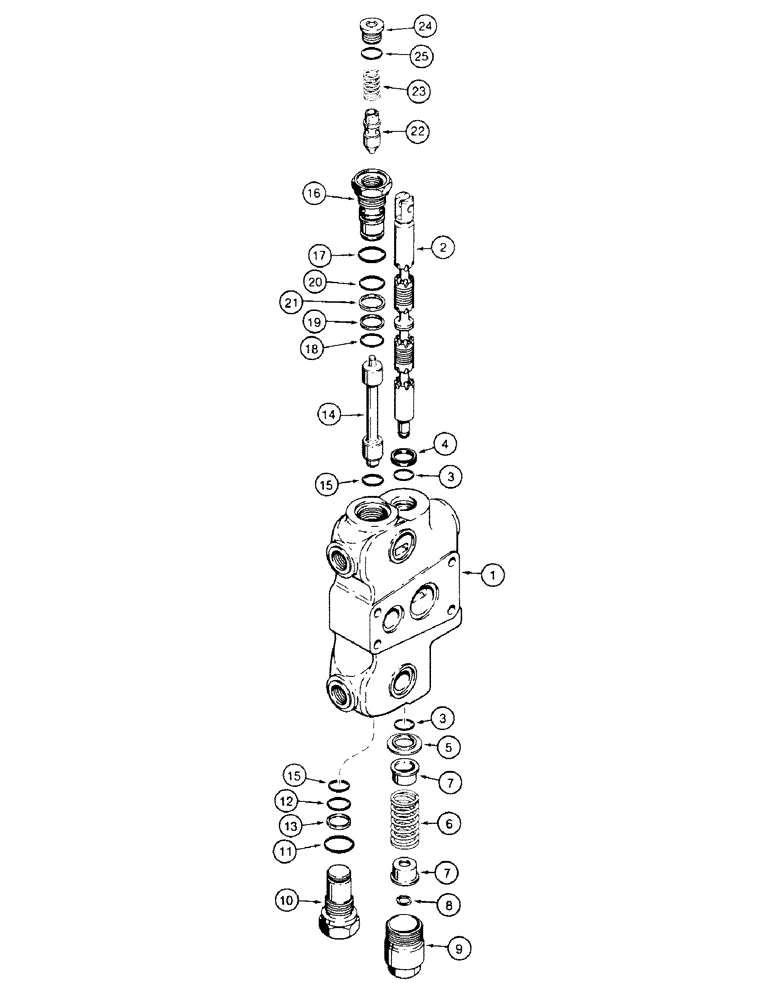

Запчасти Case 580SK (8-314) - BACKHOE CONTROL VALVE, NOT FOR PRESTIGE, STABILIZER SECTION (08) - HYDRAULICS

G109567

ELEMENT

SECTION Consists of : 1 - 25

2шт.

1

HOUSING

1шт.

2

SPOOL

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

6

G34463

SPRING

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT

2шт.

8

G33077

SNAP RING,#47, Ext

#47, Ext

1шт.

9

G33080

CAP

1шт.

G33122

PLUG,ORB

Relief Consists of : 10 - 13

1шт.

10

PLUG

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

14

1986754C1

SPOOL

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

G109627

PLUG

Lock Check Consists of : 16 - 25

1шт.

16

G108889

SEAT, VALVE

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

20

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

21

G110468

RING

1шт.

22

G108888

BY-PASS VALVE

POPPET

1шт.

23

G109630

SPRING

1шт.

24

71100209

PLUG,Hex Soc, 3/4"-16 ORB

With 25

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
