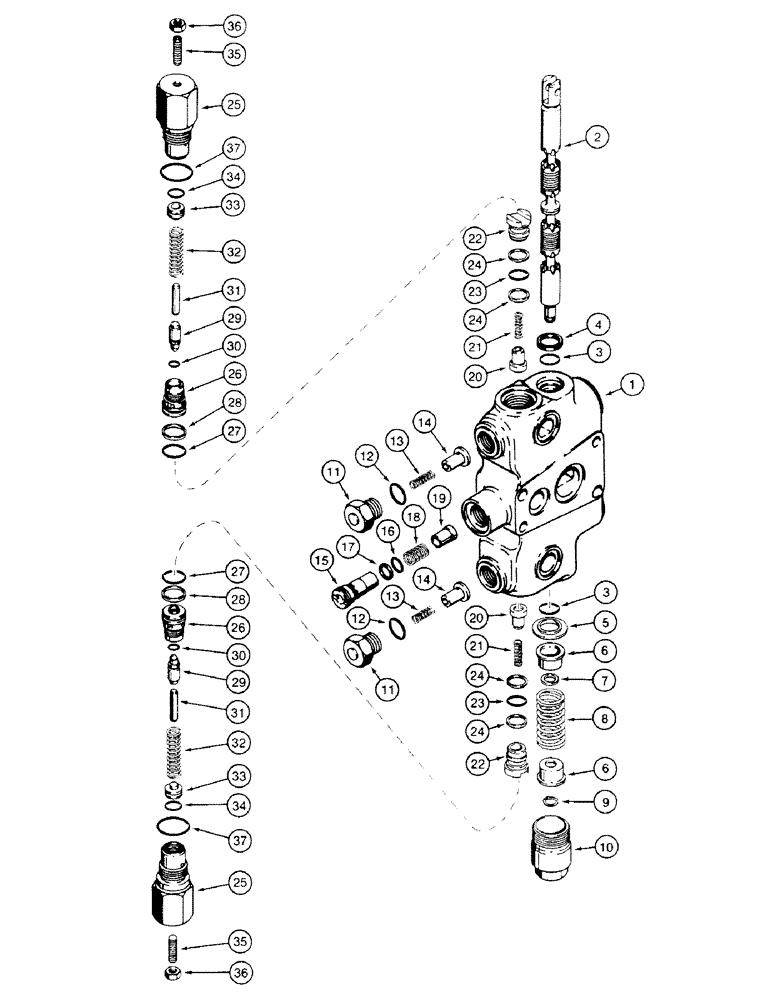

Запчасти Case 580SK (8-306) - BACKHOE CONTROL VALVE, NOT FOR PRESTIGE, SWING SECTIONS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1341823C2
ELEMENT
SECTION Consists of : 1 - 37
1шт.
1346105C1
SEAL KIT
Consists of : 3,4,12,17,23,24,27,28,37
1шт.
1
HOUSING
1шт.
2
SPOOL
1шт.
4
A32309
SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk
1шт.
5
G102711
RETAINER COLLAR,19.3 mm ID x 32.97 mm OD
1шт.
6
G33075
RETAINER,12.2mm ID, 27.9mm OD
SEAT
2шт.
7
G106410
SPACER
1шт.
8
1994596C1
SPRING
1шт.
9
G33077
SNAP RING,#47, Ext
#47, Ext
1шт.
10
G33080
CAP
1шт.
1346221C1
VALVE
ASSY Consists of : 11 - 14
1шт.
11
G34937
PLUG
1шт.
12
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
13
G34458
SPRING,Compression, 5.08mm OD x 27.56mm L
1шт.
14
G34938
VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L
1шт.
1346222C1
VALVE
ASSY Check Consists of : 15 - 17
1шт.
15
G109964
HOUSING
1шт.
16
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
17
G108723
RING,14.34mm ID x 16.94mm OD x 1.32mm Thk
1шт.
18
G109971
SPRING
1шт.
19
1978068C1
VALVE POPPET
1шт.
1346219C2
PACKAGE
VALVE ASSY Load Check Consists of : 20 - 24
1шт.
20
1343777C1
VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L
1шт.
21
1346175C1
SPRING,Compression, 6.6mm OD x 21.93mm L
1шт.
22
1343708C1
PLUG
1шт.
23
G110020
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
24
G103862
BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk
2шт.
25
HOUSING
1шт.
26
SEAT
1шт.
27
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
28
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
1шт.
29
POPPET
1шт.
30
O RING
1шт.
31
PIN
1шт.
32
SPRING
1шт.
33
PISTON
1шт.
34
O RING
1шт.
35
178-890
SET SCREW,Hex Soc, 5/16"-24 x 1"
5/16 x 25 mm
1шт.
36
425-155
JAM NUT,Jam, 5/16"-24, G5
1шт.
37
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
Выбрано товаров: 43
