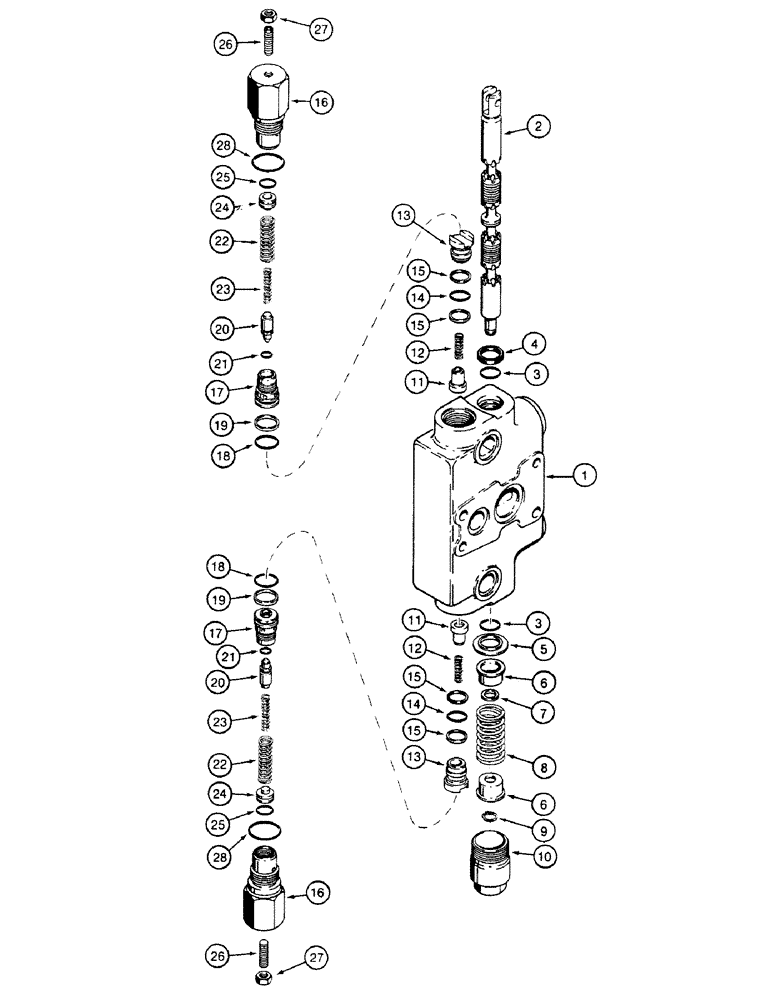

Запчасти Case 580SK (8-302) - BACKHOE CONTROL VALVE, NOT FOR PRESTIGE, BUCKET AND DIPPER SECTIONS (08) - HYDRAULICS

1986504C4

VALVE

SECTION With Relief Valves Consists of : 1 - 28

2шт.

1346105C1

SEAL KIT

Consists of : 3,4,14,15,18,19,28

1шт.

1

HOUSING

1шт.

2

SPOOL

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT

2шт.

7

G106410

SPACER

1шт.

8

1994596C1

SPRING

1шт.

9

G33077

SNAP RING,#47, Ext

retainer #47, Ext

1шт.

10

G33080

CAP

1шт.

1346219C2

PACKAGE

VALVE ASSY Consists of : 11 - 15

2шт.

11

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

1шт.

12

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

1шт.

13

1343708C1

PLUG

1шт.

14

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

15

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

2шт.

G109391

VALVE

Relief Consists of : 16 - 28 Order : G109449

2шт.

16

HOUSING

1шт.

17

SEAT

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

20

POPPET

1шт.

21

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

22

SPRING Outer

1шт.

23

SPRING Inner

1шт.

24

PISTON

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

5/16 x 25 mm

1шт.

27

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
