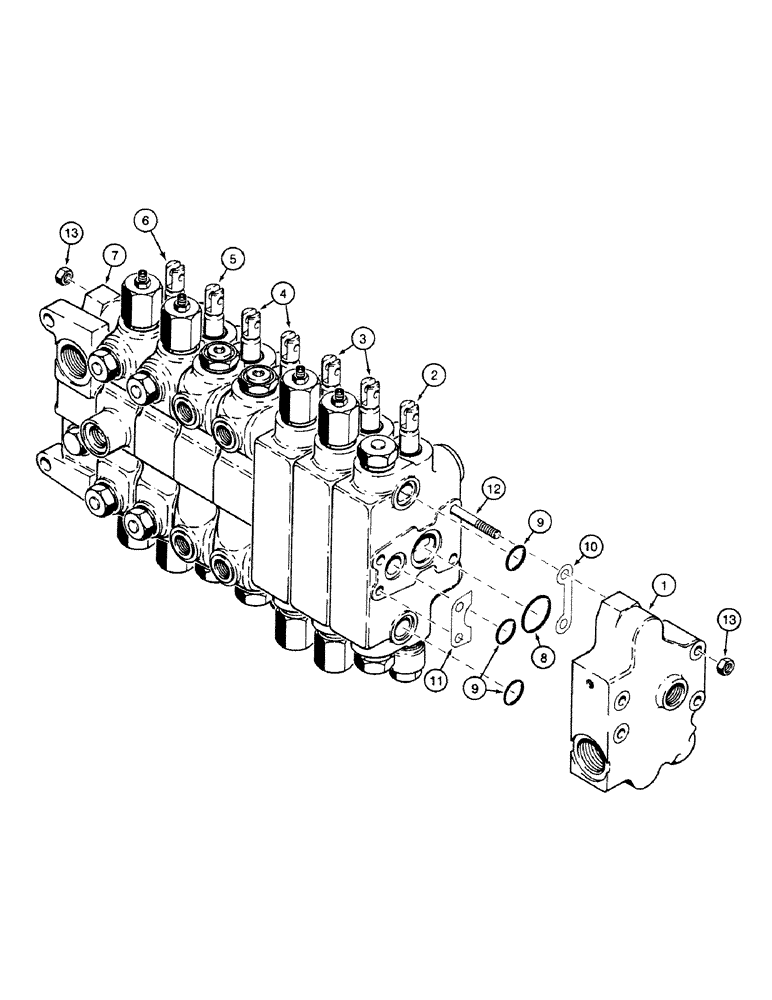

Запчасти Case 580SK (8-296) - BACKHOE CONTROL VALVE 7 SPOOLS, NOT FOR PRESTIGE, WITH EXTENDABLE DIPPER (08) - HYDRAULICS

1340863C4

DISTRIBUTOR

VALVE ASSY Consists of : 1 - 13

1шт.

E49500

DISTRIBUTOR

VALVE ASSY SAE J1177 Consists of : 1 - 13 7 Spool

1шт.

1

G109759

VALVE

SECTION Outlet See Figure 8-298

1шт.

2

1986584C3

ELEMENT

SECTION Dipper Extension See Figure 8-300

1шт.

3

1986504C3

ELEMENT

SECTION Bucket And Dipper See Figure 8-302

2шт.

4

G109567

ELEMENT

SECTION Stabilizer See Figure 8-314

2шт.

5

1980432C3

ELEMENT

SECTION Boom See Figure 8-310

1шт.

6

1341823C2

ELEMENT

SECTION Swing See Figure 8-306

1шт.

7

G109719

ELEMENT

SECTION Inlet See Figure 8-298

1шт.

8

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

8шт.

9

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

24шт.

10

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

8шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

8шт.

12

G108899

ROD

3/8 x 481 mm

4шт.

13

425-106

NUT,3/8"-16, Cl 5

8шт.
