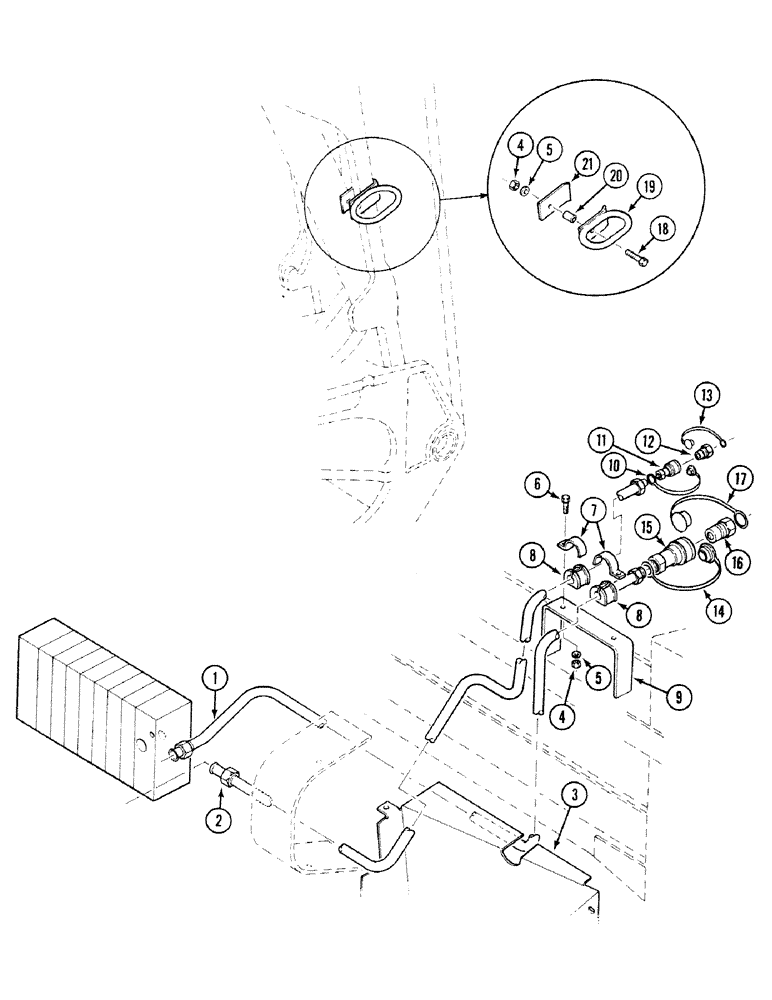

Запчасти Case 580SK (8-290) - HYDRAULIC REAR SIDESHIFT (08) - HYDRAULICS

1

E49933

PIPE

ASSY

1шт.

2

E49932

PIPE

ASSY, Serial Range: -JJH0045480

1шт.

2

112657A1

PIPE

ASSY, Start Serial: JJH0045481

1шт.

3

137365A1

PROTECTOR

SHIELD

1шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

2шт.

8

D67297

BLOCK

INSULATOR

2шт.

9

E48471

SUPPORT

, Serial Range: -JJH0016103

1шт.

9

143171A1

SUPPORT

, Start Serial: JJH0016104

1шт.

10

E42573

PLUG

1шт.

10

114777A1

PLUG

1шт.

With Mower

1шт.

11

D52800

COUPLING, QUICK, FEM

COUPLING Quick Release

1шт.

11

114776A1

COUPLING, BREAK AWAY

Quick Release

1шт.

With Mower

1шт.

12

D52694

QUICK MALE COUPLING

Quick Release

1шт.

12

114775A1

COUPLING, BREAK AWAY

Quick Release

1шт.

With Mower

1шт.

13

E42574

PLUG

1шт.

13

114778A1

PLUG

1шт.

With Mower

1шт.

14

E48643

PLUG

1шт.

15

E48641

FITTING

COUPLING Quick Release

1шт.

16

E48642

FITTING

COUPLING Quick Release

1шт.

17

E48644

PLUG

1шт.

18

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

19

E48571

CLAMP

COLLAR

4шт.

20

E48572

SPACER

2шт.

21

E48549

CLAMP

PLATE

2шт.
