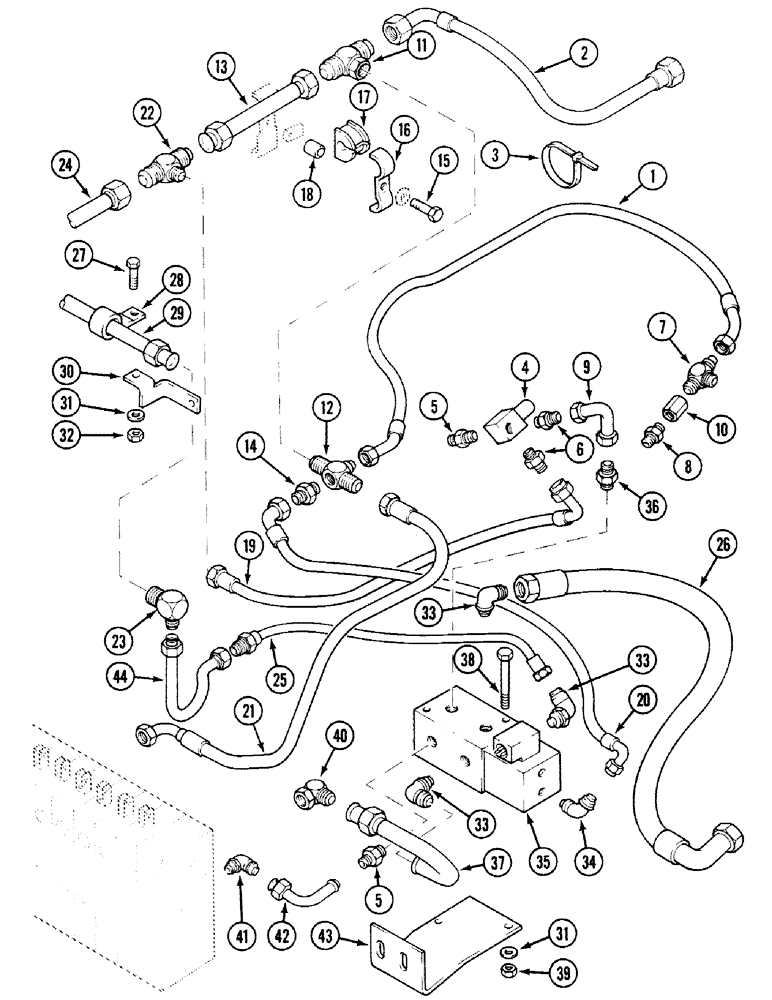

Запчасти Case 580SK (8-286) - AUXILIARY HYDRAULIC REAR SIDESHIFT, WITH MOWER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
E49948
HOSE
, Start Serial: JJH0016411
1шт.
2
E49947
HOSE
, Start Serial: JJH0016411
1шт.
3
L11541
CABLE TIE,203.2mm L, Nylon
CABLE STRAP, Start Serial: JJH0016411
4шт.
4
128475A1
VALVE POPPET
, Start Serial: JJH0016411
1шт.
5
E48111
FITTING
UNION, Start Serial: JJH0016411
2шт.
6
E47414
FITTING
UNION, Start Serial: JJH0016411
2шт.
7
218-555
TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br
UNION, Start Serial: JJH0016411
1шт.
8
1345488C2
PRESSURE SWITCH
SENDER Temperature, Start Serial: JJH0016411
1шт.
9
E55051
PIPE
, Start Serial: JJH0016411
1шт.
10
E55045
FITTING
UNION, Start Serial: JJH0016411
1шт.
11
218-838
TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br
TEE, Start Serial: JJH0016411
1шт.
12
E49957
FITTING
TEE, Start Serial: JJH0016411
1шт.
13
E55096
PIPE
TUBE, Start Serial: JJH0016411
1шт.
14
218-441
HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF
, Start Serial: JJH0016411
1шт.
15
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
, Start Serial: JJH0016411
1шт.
16
D133675
CLAMP
CLIP, Start Serial: JJH0016411
1шт.
17
D67297
BLOCK
INSULATOR, Start Serial: JJH0016411
1шт.
18
R46493
SPACER,0.406" ID x 0.625" OD x 0.850" Thk
, Start Serial: JJH0016411
1шт.
19
E55095
HOSE
, Start Serial: JJH0016411
1шт.
20
E49951
HOSE
, Start Serial: JJH0016411
1шт.
21
E49949
HOSE
, Serial Range: JJH0016411-JJH0045480
1шт.
21
112659A1
HOSE
, Start Serial: JJH0045480
1шт.
22
218-587
TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br
, Start Serial: JJH0016411
1шт.
23
218-478
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC
, Start Serial: JJH0016411
1шт.
24
E49933
PIPE
, Start Serial: JJH0016411
1шт.
25
E49952
HOSE
, Serial Range: JJH0016411-JJH0045480
1шт.
25
112698A1
HOSE
, Start Serial: JJH0045480
1шт.
26
E49946
HOSE
, Start Serial: JJH0016411
1шт.
27
409-7612
BOLT,3/8"-16 x 1.09" OAL
, Start Serial: JJH0013001
1шт.
28
515-25254
CLAMP,1", Insul, 1/2" Bolt
, Start Serial: JJH0013001
1шт.
29
E49932
PIPE
, Start Serial: JJH0013001
1шт.
30
E55076
SUPPORT
, Start Serial: JJH0013001
1шт.
31
492-11038
LOCK WASHER,3/8"
, Start Serial: JJH0013001
3шт.
32
425-106
NUT,3/8"-16, Cl 5
, Start Serial: JJH0013001
1шт.
33
E48502
FITTING
ELBOW, Start Serial: JJH0013001
3шт.
34
E44260
FITTING
UNION, Start Serial: JJH0013001
1шт.
35
E48637
SOLENOID VALVE
DISTRIBUTOR See Figure 8-282, Start Serial: JJH0013001
1шт.
36
E47414
FITTING
UNION, Start Serial: JJH0013001
2шт.
37
E48467
PIPE
, Serial Range: -JJH0045480
1шт.
37
112699A1
PIPE
, Start Serial: JJH0045481
1шт.
38
413-664
BOLT,Hex, 3/8" - 16 x 4", Gr 5
3/8 x 102 mm, Start Serial: JJH0013001
2шт.
39
425-146
JAM NUT,3/8" - 16, Gr 5
, Start Serial: JJH0013001
2шт.
40
218-5234
ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw
, Start Serial: JJH0013001
1шт.
41
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
, Start Serial: JJH0013001
1шт.
41
119936A1
FITTING
TEE Lock, Start Serial: JJH0045666
1шт.
42
E48461
PIPE
, Start Serial: JJH0013001
1шт.
43
E49896
SUPPORT
, Start Serial: JJH0013001
1шт.
44
125702A1
PIPE
, Start Serial: JJH0013001
1шт.
Выбрано товаров: 48
