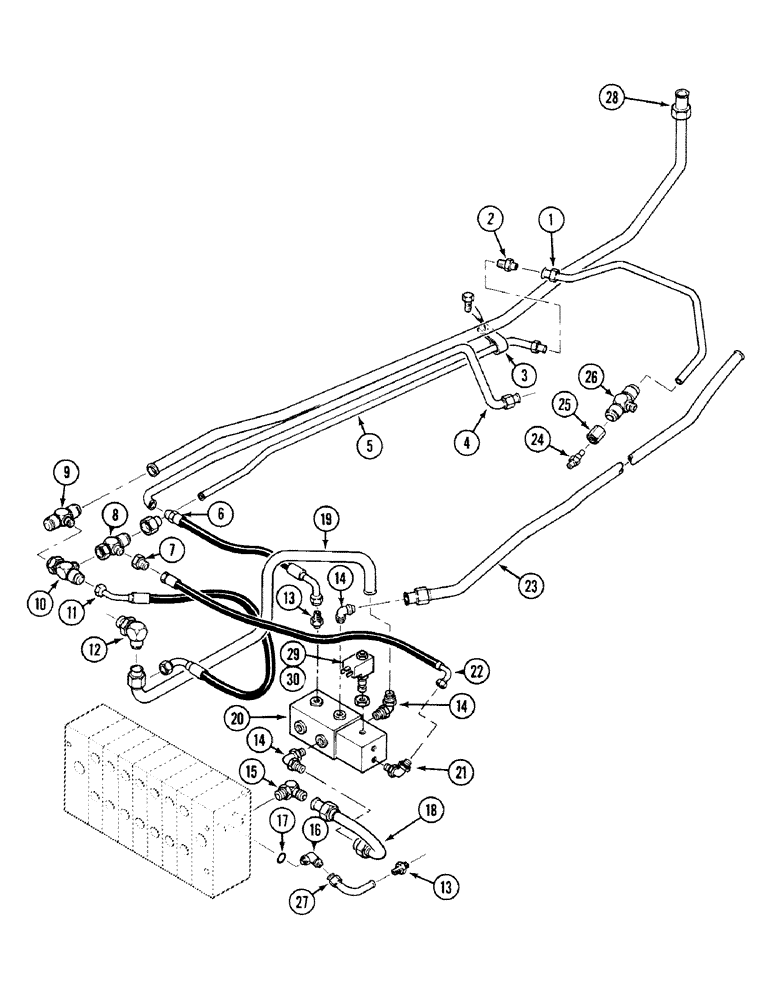

Запчасти Case 580SK (8-282) - AUXILIARY HYDRAULIC REAR SIDESHIFT (08) - HYDRAULICS

1

E48459

PIPE

ASSY

1шт.

2

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

3

49771

CLAMP

1шт.

4

E48455

PIPE

ASSY

1шт.

5

E48465

PIPE

ASSY

1шт.

6

E48475

HOSE

ASSY

1шт.

7

E48498

FITTING

REDUCER

1шт.

8

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

9

218-598

TEE,1 5/16"-12 37 Degree

TEE

1шт.

10

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1шт.

11

E48474

HOSE

ASSY

1шт.

12

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

1шт.

13

E48111

FITTING

2шт.

14

E48502

FITTING

3шт.

15

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1шт.

16

119935A1

TEE

TEE Lock, Start Serial: JJH0045666

1шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

With 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

E48467

PIPE

ASSY, Serial Range: -JJH0045480

1шт.

18

112699A1

PIPE

ASSY, Start Serial: JJH0045481

1шт.

19

E48620

PIPE

ASSY

1шт.

20

E48637

SOLENOID VALVE

ASSY

1шт.

122875A1

SEAL KIT

1шт.

123092A1

SEAL KIT

Repair

1шт.

21

E44260

FITTING

90 deg

1шт.

22

E48473

HOSE

ASSY

1шт.

23

E48457

PIPE

ASSY

1шт.

24

1345488C2

PRESSURE SWITCH

SENDER

1шт.

25

E48501

FITTING

, Serial Range: -JJH0016504

1шт.

25

E55045

FITTING

UNION Use With : 1345488C1, Start Serial: JJH0016505

1шт.

26

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

1шт.

27

E48461

PIPE

ASSY

1шт.

28

E48489

PIPE

ASSY

1шт.

29

122992A1

SPINDLE

COIL

1шт.

30

123091A1

KIT

SOLENOID

1шт.
