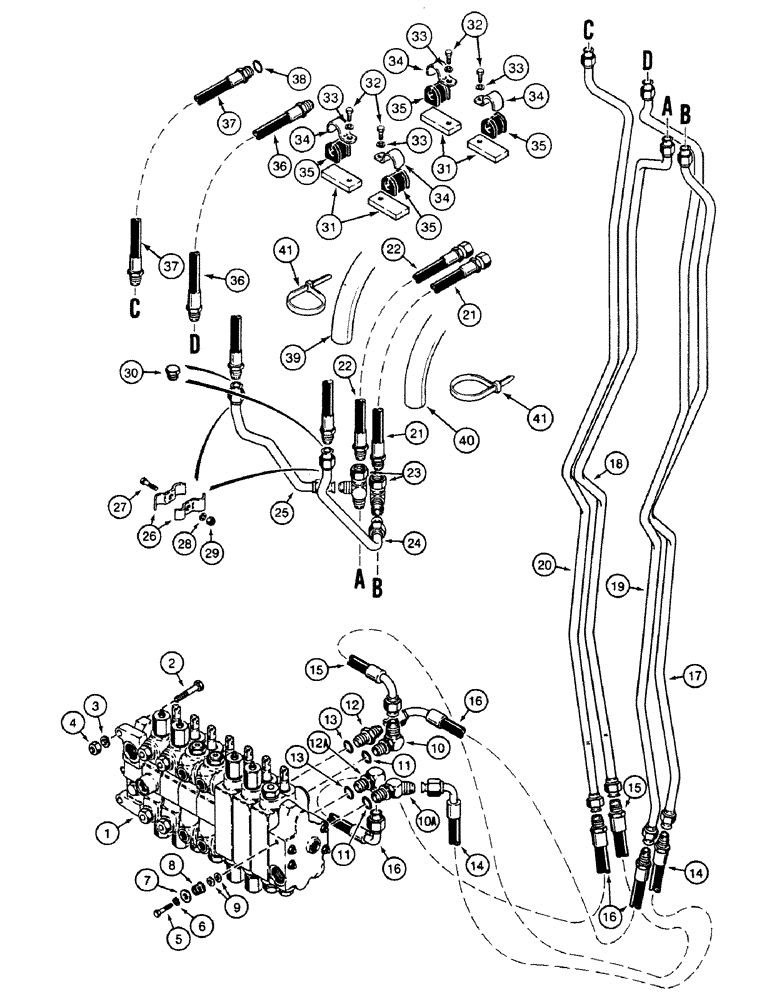

Запчасти Case 580SK (8-278) - REAR HYDRAULIC AUXILIARY ATTACHMENTS, SIDESHIFT BACKHOE, OPTIONAL FOR EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSY See Figure 8-296 7 Spool

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 64 mm

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

3/8"

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR

1шт.

9

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

13/32"

2шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Upper with 11

1шт.

10a

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW 45 deg Lower With : 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

With 13

1шт.

12a

D140242

FITTING

ELBOW 90 deg With : 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

E48340

HOSE

2790 mm Right

1шт.

15

E48337

HOSE

2950 mm Left

1шт.

16

E48338

HOSE

3 M

1шт.

17

E49594

PIPE

Right

1шт.

18

E49596

PIPE

Left

1шт.

19

D138057

TUBE

Right

1шт.

20

D138059

TUBE

Left

1шт.

21

E48335

HOSE

, Serial Range: -JJH0015320

1шт.

21

D140708

HOSE,12.7mm ID x 850mm L, SAE 100R2

, Start Serial: JJH0015321

1шт.

22

E48336

HOSE

, Serial Range: -JJH0015320

1шт.

22

D134095

HOSE,12.7mm ID x 700mm L, SAE 100R2

, Start Serial: JJH0015321

1шт.

23

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

2шт.

24

D140322

PIPE

Right

1шт.

25

127583A1

PIPE

Left

4шт.

26

D127681

CLAMP

4шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

425-106

NUT,3/8"-16, Cl 5

2шт.

30

218-777

PLUG,1 1/16"-12, 37 Degree

2шт.

31

D68529

BLOCK

SHIM

4шт.

32

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

33

492-11038

LOCK WASHER,3/8"

4шт.

34

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

4шт.

35

D67297

BLOCK

INSULATOR

4шт.

36

E49913

HOSE

1шт.

37

E49914

HOSE

With : 38

1шт.

38

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

39

D134729

SLEEVE

1шт.

40

D134728

TUBE

SLEEVE

1шт.

41

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.
