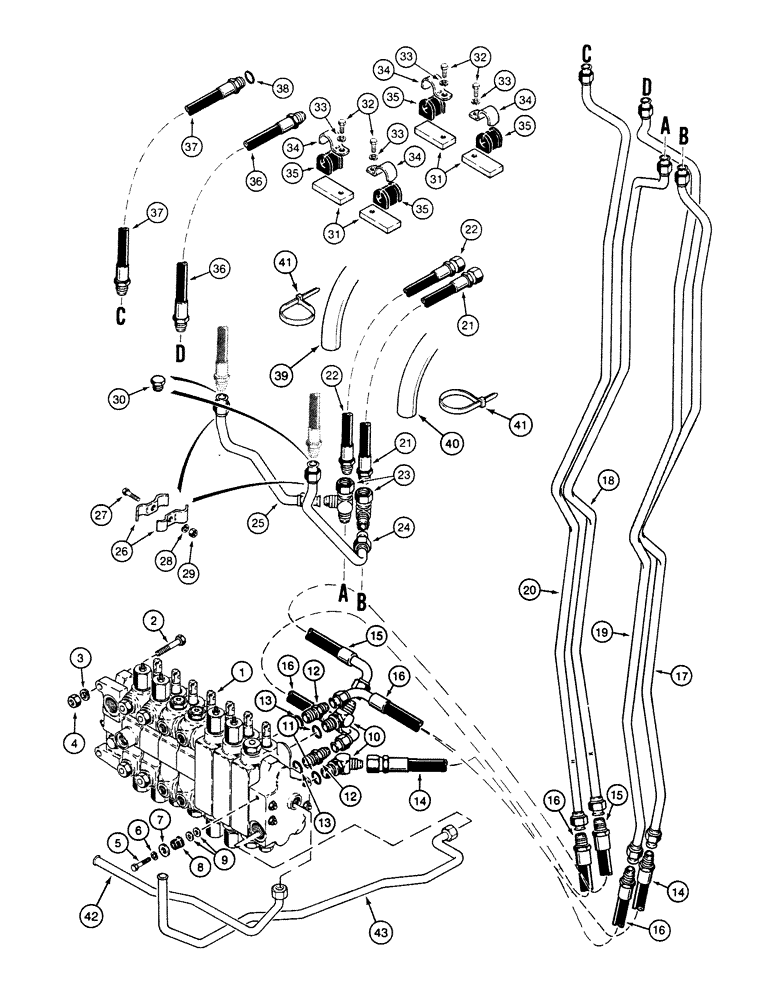

Запчасти Case 580SK (8-274) - PARTS FOR REAR HYDRAULIC ATTACHMENTS, INTEGRAL BACKHOE, EXTENDABLE DIPPER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
Valve Assy 7 Spool See Figure 8-296
1шт.
2
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1/2 x 64 mm
2шт.
3
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
4
425-108
NUT,1/2" - 13, Gr 5
2шт.
5
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
6
492-11038
LOCK WASHER,3/8"
1шт.
7
D52275
WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk
3/8"
1шт.
8
D52276
ISOLATOR,10.16mm ID x 28.07mm OD x mm L
CUSHION
1шт.
9
495-81266
WASHER,0.41" ID x 0.88" OD x 0.07" Thk
13/32"
2шт.
10
218-5149
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
With 11
2шт.
11
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
12
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Adapter with 13
2шт.
13
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
14
E48530
HOSE
Lower
1шт.
15
E48520
HOSE
Upper
1шт.
16
E48524
HOSE
1525 mm
2шт.
17
E49594
PIPE
Right
1шт.
18
E49596
PIPE
Left
1шт.
19
D138057
TUBE
Right
1шт.
20
D138059
TUBE
Left
1шт.
21
E48335
HOSE
, Serial Range: -JJH0015320
1шт.
21
D140708
HOSE,12.7mm ID x 850mm L, SAE 100R2
, Start Serial: JJH0015321
1шт.
22
E48336
HOSE
, Serial Range: -JJH0015320
1шт.
22
D134095
HOSE,12.7mm ID x 700mm L, SAE 100R2
, Start Serial: JJH0015321
1шт.
23
218-5221
TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run
2шт.
24
D140322
PIPE
Right
1шт.
25
127583A1
PIPE
Left
1шт.
26
D127681
CLAMP
4шт.
27
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
28
492-11038
LOCK WASHER,3/8"
2шт.
29
425-106
NUT,3/8"-16, Cl 5
2шт.
30
218-777
PLUG,1 1/16"-12, 37 Degree
2шт.
31
D68529
BLOCK
SHIM
4шт.
32
413-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
4шт.
33
492-11038
LOCK WASHER,3/8"
4шт.
34
D143410
CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type
4шт.
35
D67297
BLOCK
INSULATOR
4шт.
36
E49913
HOSE
1шт.
37
E49914
HOSE
With : 38
1шт.
38
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
39
D134729
SLEEVE
1шт.
40
D134728
TUBE
SLEEVE
1шт.
41
L18331
CABLE TIE,375.9mm L, Nylon, Black
CABLE STRAP
2шт.
42
D145228
PIPE
1шт.
43
D138914
TUBE
1шт.
Выбрано товаров: 45
