Заказать запчасти

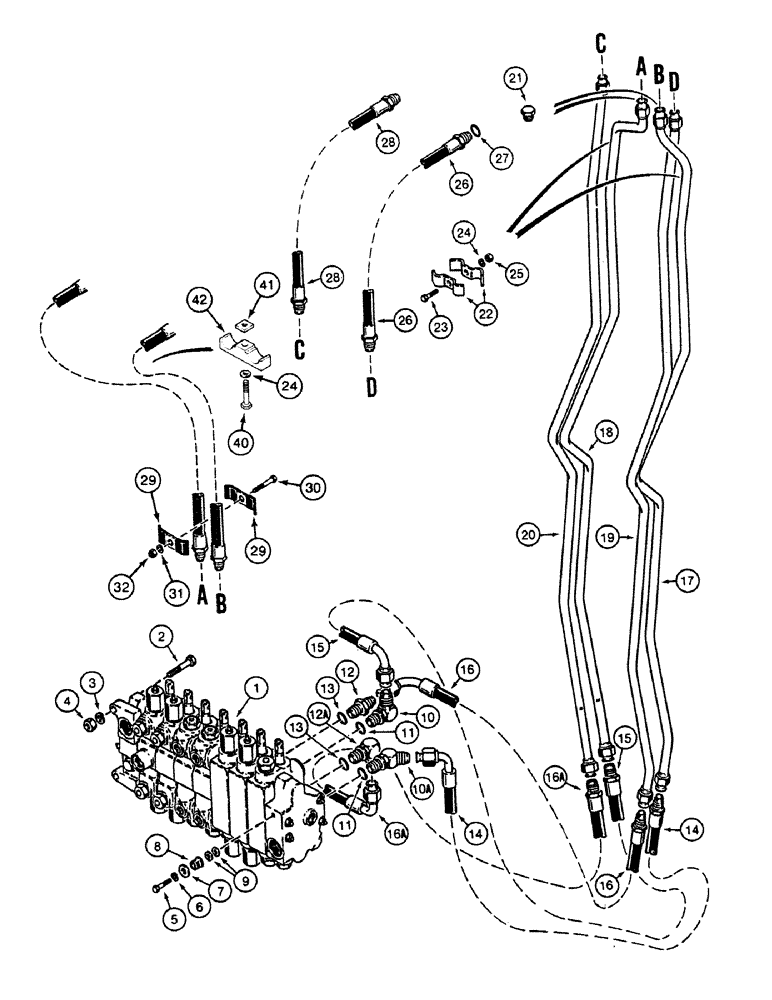

Запчасти Case 580SK (8-270) - AUXILIARY HYDRAULICS OPTIONAL ATTACHMENTS, SIDESHIFT BACKHOE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1346087C2
VALVE, CONTROL
ASSY 7 Spool
1шт.
2
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1/2 x 64 mm
2шт.
3
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
4
425-108
NUT,1/2" - 13, Gr 5
2шт.
5
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
6
492-11038
LOCK WASHER,3/8"
1шт.
7
D52275
WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk
3/8"
1шт.
8
D52276
ISOLATOR,10.16mm ID x 28.07mm OD x mm L
INSULATOR
1шт.
9
495-81266
WASHER,0.41" ID x 0.88" OD x 0.07" Thk
13/32"
2шт.
10
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Upper with 11
1шт.
10
218-5138
ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
ELBOW 45 deg Lower With : 11
1шт.
11
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
12
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
With 13
1шт.
12a
D140242
FITTING
ELBOW 90 deg With : 13
1шт.
13
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
14
E48340
HOSE
Lower
1шт.
15
E48339
HOSE
Upper
1шт.
16
E48337
HOSE
Upper
1шт.
16a
E48338
HOSE
Lower
1шт.
17
E47976
PIPE
Right
1шт.
18
E47978
PIPE
Left
1шт.
19
E49851
PIPE
Right
1шт.
20
E49850
PIPE
Left
1шт.
21
218-777
PLUG,1 1/16"-12, 37 Degree
2шт.
22
D127681
CLAMP
4шт.
23
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
24
492-11038
LOCK WASHER,3/8"
2шт.
25
425-106
NUT,3/8"-16, Cl 5
2шт.
26
D140303
HOSE ASSY.
875 mm With : 27
1шт.
27
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
28
D140302
HOSE
875 mm
1шт.
29
D120614
CLAMP,25mm W x 68mm L x 9mm Thk
2шт.
30
413-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
3/8 x 51 mm
1шт.
31
492-11038
LOCK WASHER,3/8"
1шт.
32
425-106
NUT,3/8"-16, Cl 5
1шт.
40
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
41
84899
SQUARE NUT,Sq, 3/8"-16, G2
1шт.
42
D120613
CLAMP,20mm ID
1шт.
Выбрано товаров: 38
