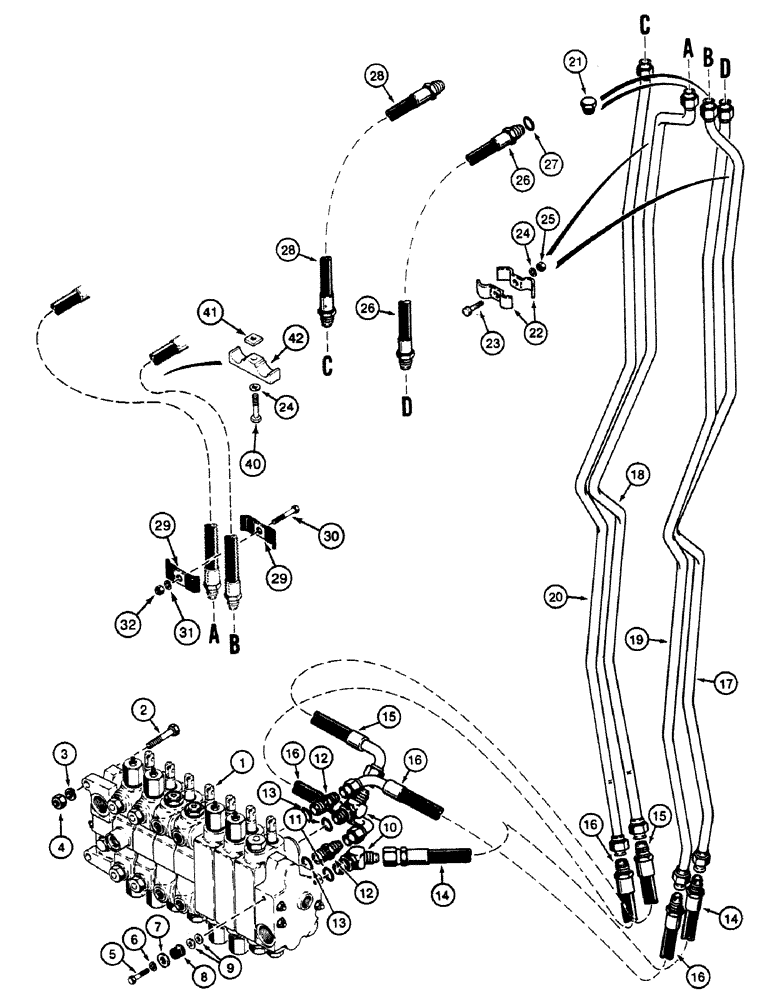

Запчасти Case 580SK (8-266) - AUXILIARY HYDRAULICS OPTIONAL ATTACHMENTS, INTEGRAL BACKHOE (08) - HYDRAULICS

1

1346087C2

VALVE, CONTROL

ASSY 7 Spool

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 64 mm

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

3/8"

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR

1шт.

9

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

13/32"

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

With 11

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER With : 13

2шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

E48530

HOSE

Lower

1шт.

15

E48520

HOSE

Upper

1шт.

16

E48524

HOSE

Upper Lower

2шт.

17

E47976

PIPE

Right

1шт.

18

E47978

PIPE

Left

1шт.

19

E49851

PIPE

Right

1шт.

20

E49850

PIPE

Left

1шт.

21

218-777

PLUG,1 1/16"-12, 37 Degree

2шт.

22

D127681

CLAMP

4шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

D140303

HOSE ASSY.

875 mm With : 27

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

D140302

HOSE

875 mm

1шт.

29

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

30

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3/8 x 51 mm

1шт.

31

492-11038

LOCK WASHER,3/8"

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.

40

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

41

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

42

D120613

CLAMP,20mm ID

1шт.
