(8-256) - VALVE ASSEMBLY BASIC MODULE (PVG32), PRESTIGE VERSION

Запчасти Case 580SK (8-256) - VALVE ASSEMBLY BASIC MODULE (PVG32), PRESTIGE VERSION (08) - HYDRAULICS

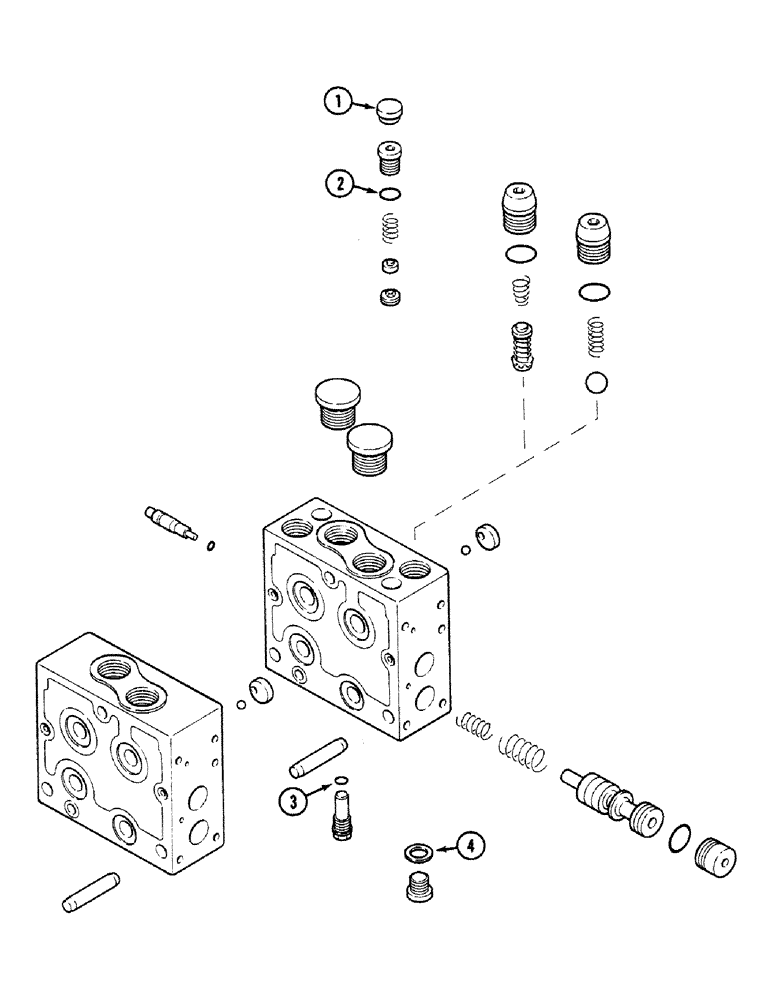

Схема запчастей Case 580SK - (8-256) - VALVE ASSEMBLY BASIC MODULE (PVG32), PRESTIGE VERSION (08) - HYDRAULICS
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

E48786

LARGE PLATE

PLATE, LARGE VALVE 4 in 1 With : 1 - 4

1шт.

E48786

LARGE PLATE

PLATE, LARGE VALVE Stabilizer With : 1 - 4

2шт.

E48787

LARGE PLATE

PLATE, LARGE VALVE Extendable Dipper With : 1 - 4

1шт.

E48558

GASKET KIT

Consists of : 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG

2шт.

2

NSS

NOT SOLD SEPARAT

O RING 9,0 x 2,0 mm

2шт.

3

NSS

NOT SOLD SEPARAT

O RING 6,0 x 1,5 mm

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER

2шт.
