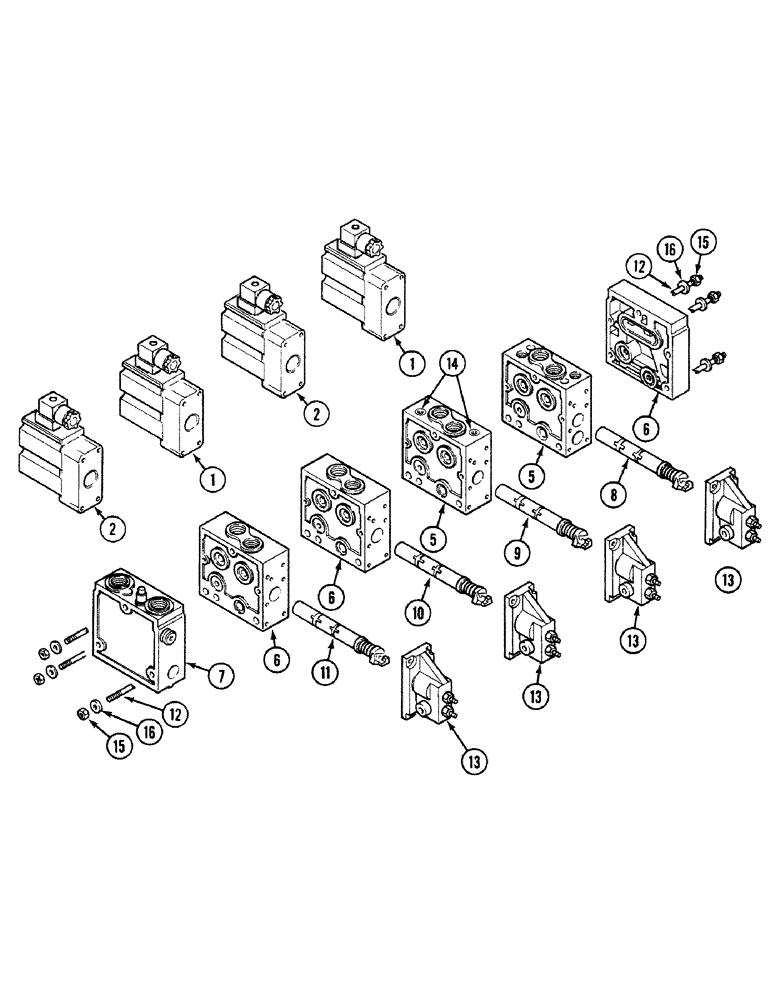

Запчасти Case 580SK (8-252) - VALVE ASSEMBLY (PVG32), SERVOPOWER VERSION, S/N JJH0046382 AND UP (08) - HYDRAULICS

E48318

VALVE, CONTROL

Consists of : 1 - 16

1шт.

1

E48561

SPINDLE

VALVE Electrical See Figure 8-262

2шт.

2

142419A1

SPINDLE

VALVE Electrical

2шт.

3

E48788

LARGE PLATE

PLATE, LARGE See Figure 8-258

1шт.

4

177349A1

LARGE PLATE

PLATE, LARGE VALVE Floating

1шт.

5

177191A1

LARGE PLATE

PLATE, LARGE VALVE

1шт.

6

E48787

LARGE PLATE

PLATE, LARGE VALVE 4 in 1 Lift

2шт.

7

E48785

LARGE PLATE

PLATE, LARGE VALVE side See Figure 8-254

1шт.

8

177350A1

SPOOL

1шт.

9

E48789

SPOOL

1шт.

10

177194A1

SPOOL

1шт.

11

177351A1

SPOOL

1шт.

12

E48793

TRUSS ROD

STUD

3шт.

13

177196A1

CONTROL

4шт.

14

177207A1

VALVE POPPET

2шт.

15

183666A1

NUT

6шт.

16

E48792

WASHER

6шт.
