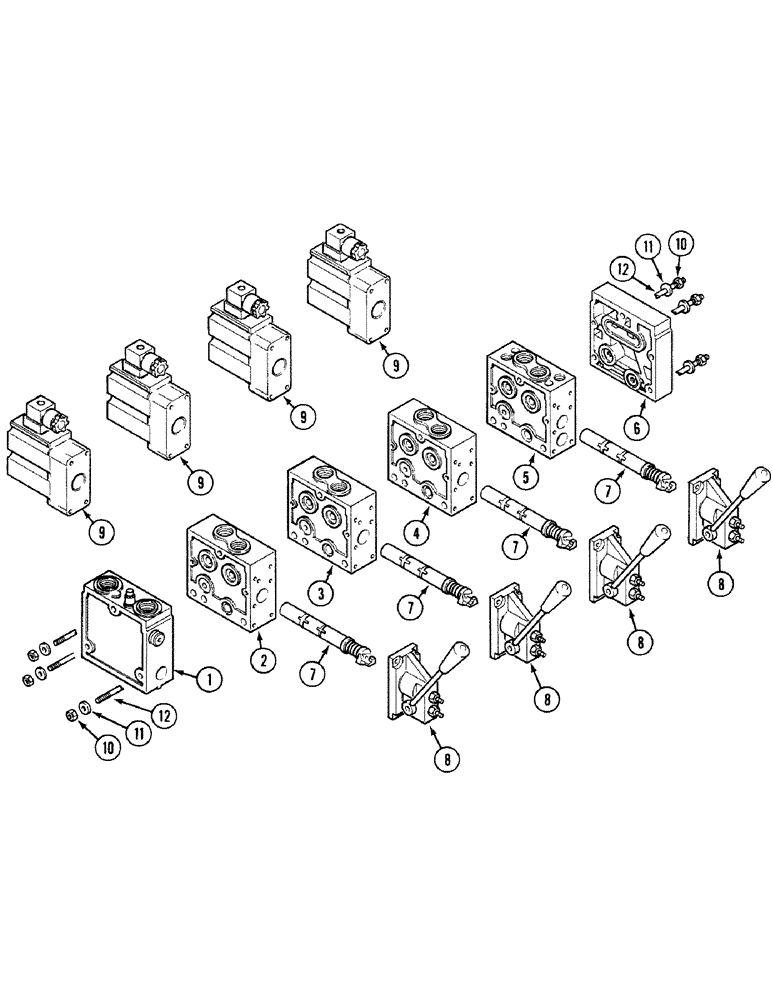

Запчасти Case 580SK (8-250) - VALVE ASSEMBLY (PVG32), PRESTIGE VERSION, UP TO S/N JJH0046381 (08) - HYDRAULICS

E47294

DISTRIBUTOR

VALVE Consists of : 1 - 12

1шт.

1

E48785

LARGE PLATE

PLATE, LARGE VALVE Side See Figure 8-254

1шт.

2

E48786

LARGE PLATE

PLATE, LARGE VALVE 4 in 1 See Figure 8-256

1шт.

3

E48786

LARGE PLATE

PLATE, LARGE VALVE Stabilizer Right See Figure 8-256

1шт.

4

E48786

LARGE PLATE

PLATE, LARGE VALVE Stabilizer Left See Figure 8-256

1шт.

5

E48787

LARGE PLATE

PLATE, LARGE VALVE Extendable Dipper See Figure 8-256

1шт.

6

E48788

LARGE PLATE

PLATE, LARGE See Figure 8-258

1шт.

7

E48789

SPOOL

4шт.

8

E48790

CONTROL

LEVER See Figure 8-260

4шт.

9

E48561

SPINDLE

VALVE See Figure 8-262 Electrical

4шт.

10

E48791

NUT

6шт.

11

E48792

WASHER

6шт.

12

E48793

TRUSS ROD

STUD

3шт.
