Запчасти Case 580SK (2-08) - AIR CLEANER AND AIR INTAKE PARTS, 4T-390 ENGINE (02) - ENGINE

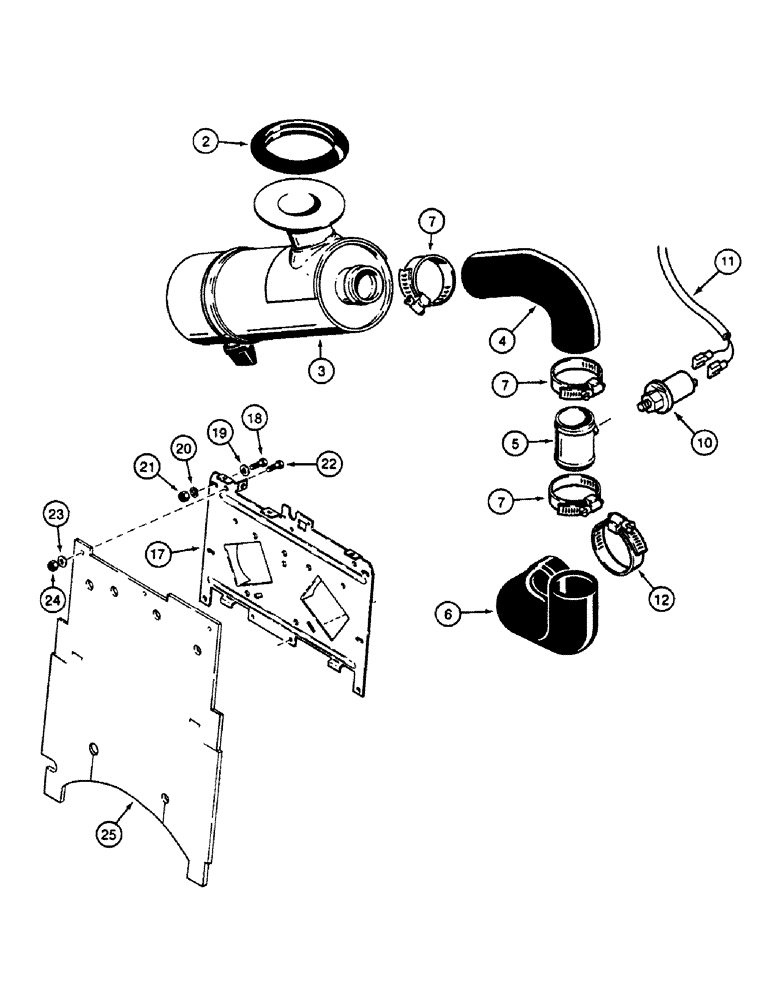

Схема запчастей Case 580SK - (2-08) - AIR CLEANER AND AIR INTAKE PARTS, 4T-390 ENGINE (02) - ENGINE
4
23
12
11
20
22
7
6
7
21
10
2
19
3
18
24
25
5
7
17

Артикул

Название

Примечание

Количество

2

A173494

SEAL

1шт.

3

A184107

AIR CLEANER

See Figure : 2-10

1шт.

4

D139340

INTAKE AIR HOSE,63.50 mm ID, SAE J200

Upper

1шт.

5

D139343

ADAPTER

UNION 1/8"

1шт.

6

D139394

LARGE HOSE

HOSE,LARGE Lower

1шт.

7

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

3шт.

10

E48614

INDICATOR

SENDER Restrictor

1шт.

11

D140449

HARNESS

WIRE

1шт.

12

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

Lower

1шт.

17

D140712

SUPPORT

BRACKET

1шт.

18

187-1927

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 3/4"

BOLT 3/8 x 19 mm

4шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

425-106

NUT,3/8"-16, Cl 5

4шт.

22

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

23

495-11034

WASHER,5/16", SAE

3шт.

24

231-1445

NUT,5/16"-18, GB

3шт.

25

140929A1

PROTECTOR

PAD

1шт.

Выбрано товаров: 18
