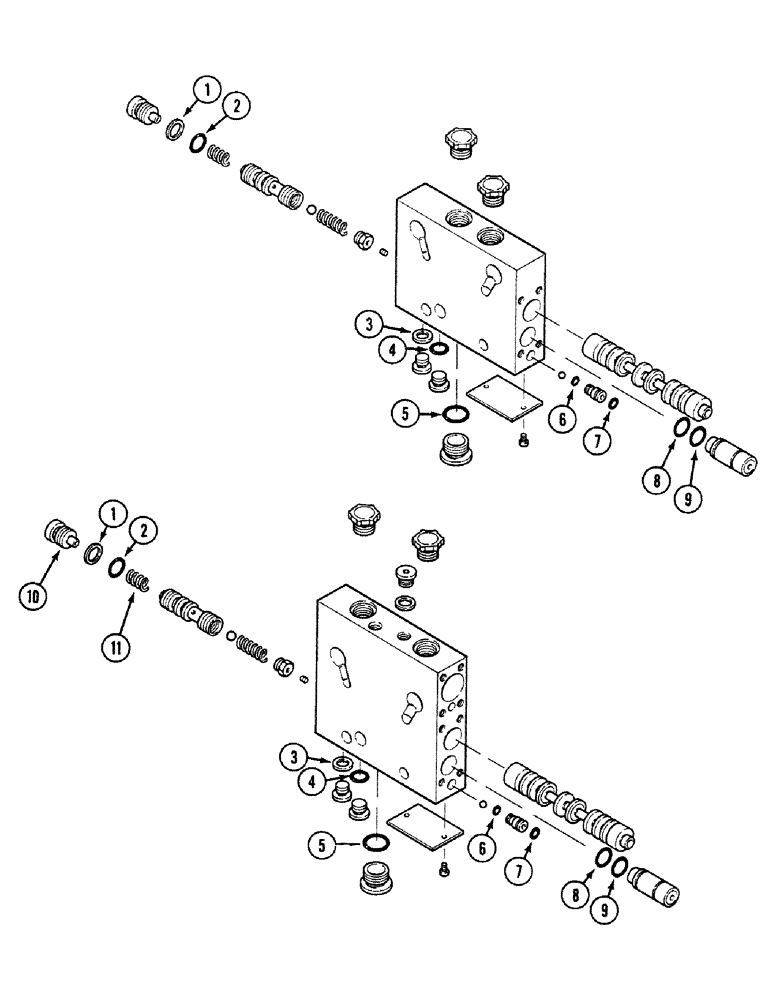

Запчасти Case 580SK (8-240) - VALVES BASIC (PVG60), PRESTIGE VERSION (08) - HYDRAULICS

E48796

LARGE PLATE

PLATE, LARGE VALVE Boom With : 1 - 9

1шт.

E48796

LARGE PLATE

PLATE, LARGE VALVE Swing With : 1 - 9

1шт.

E48796

LARGE PLATE

PLATE, LARGE VALVE Backhoe With : 1 - 9

1шт.

E48797

LARGE PLATE

PLATE, LARGE VALVE Swing With : 1 - 9

1шт.

E48798

LARGE PLATE

PLATE, LARGE VALVE Loader With : 1 - 9

1шт.

E48799

LARGE PLATE

PLATE, LARGE VALVE Loader With : 1 - 9

1шт.

E48565

GASKET KIT

Consists of : 1 - 9

1шт.

1

112396A1

BACK-UP RING

1шт.

2

112395A1

O-RING

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER 14,2 x 17,9

1шт.

4

NSS

NOT SOLD SEPARAT

O RING 12,0 x 2,0 mm

1шт.

5

NSS

NOT SOLD SEPARAT

O RING 15,3 x 2,4 mm

1шт.

6

NSS

NOT SOLD SEPARAT

O RING 6,0 x 2,0 mm

1шт.

7

NSS

NOT SOLD SEPARAT

O RING 8,0 x 2,0 mm

1шт.

8

NSS

NOT SOLD SEPARAT

O RING 16,3 x 2,4 mm

1шт.

9

NSS

NOT SOLD SEPARAT

O RING 18,3 x 2,4 mm

1шт.

10

112392A1

PLUG

CAP Use With : E48797

1шт.

11

112393A1

SPRING

33 mm Use With : E48797

1шт.
