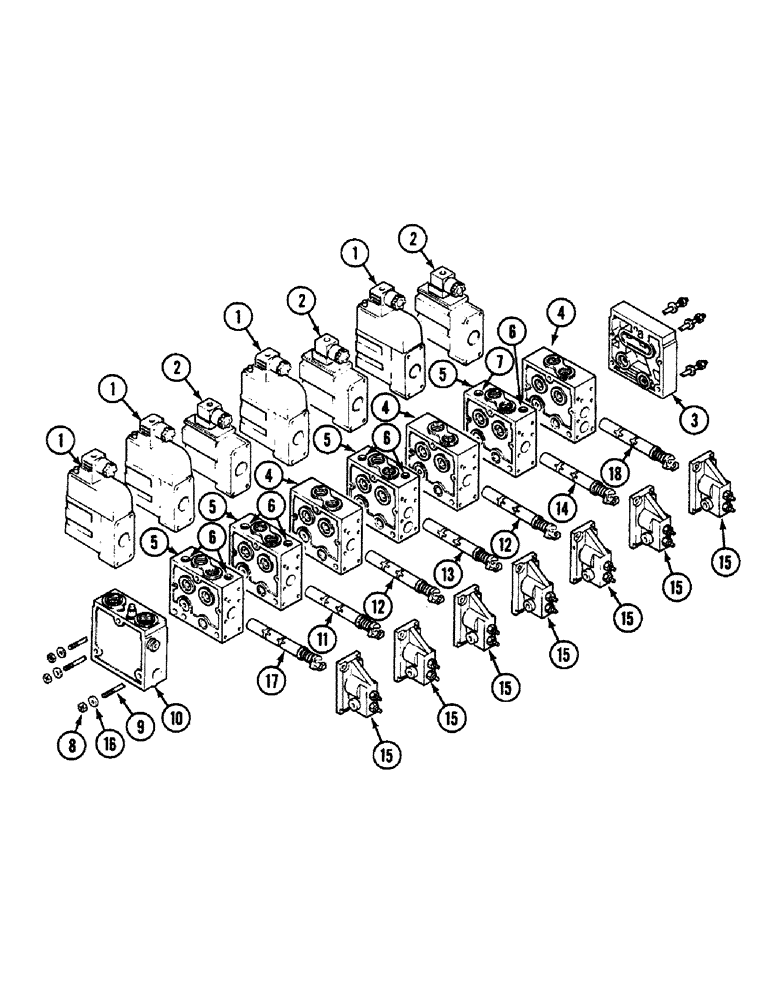

Запчасти Case 580SK (8-236) - VALVE ASSEMBLY (PVG32), S/N JJH0046382 AND UP, SERVOPOWER VERSION (08) - HYDRAULICS

E48319

VALVE, CONTROL

Consists of : 1 - 18

1шт.

1

142419A1

SPINDLE

VALVE Electrical

4шт.

2

E48561

SPINDLE

VALVE See Figure 8-250 Electrical

3шт.

3

177197A1

LARGE PLATE

PLATE, LARGE

1шт.

4

E48787

LARGE PLATE

PLATE, LARGE VALVE See Figure 8-256

3шт.

5

177191A1

LARGE PLATE

PLATE, LARGE VALVE

4шт.

6

177207A1

VALVE POPPET

7шт.

7

177211A1

VALVE POPPET

1шт.

8

183666A1

NUT

6шт.

9

177198A1

TRUSS ROD

STUD

3шт.

10

177190A1

LARGE PLATE

PLATE, LARGE VALVE Side

1шт.

11

177192A1

SPOOL

VALVE Electrical

2шт.

12

E48789

SPOOL

2шт.

13

177194A1

SPOOL

2шт.

14

177195A1

SPOOL

1шт.

15

177196A1

CONTROL

7шт.

16

E48792

WASHER

6шт.

17

177192A1

SPOOL

, Serial Range: JJH0046382-JJH0049399

1шт.

17

185150A1

SPOOL

, Start Serial: JJH0049400

1шт.

18

177194A1

SPOOL

, Serial Range: JJH0046382-JJH0049399

1шт.

18

177192A1

SPOOL

, Start Serial: JJH0049400

1шт.
