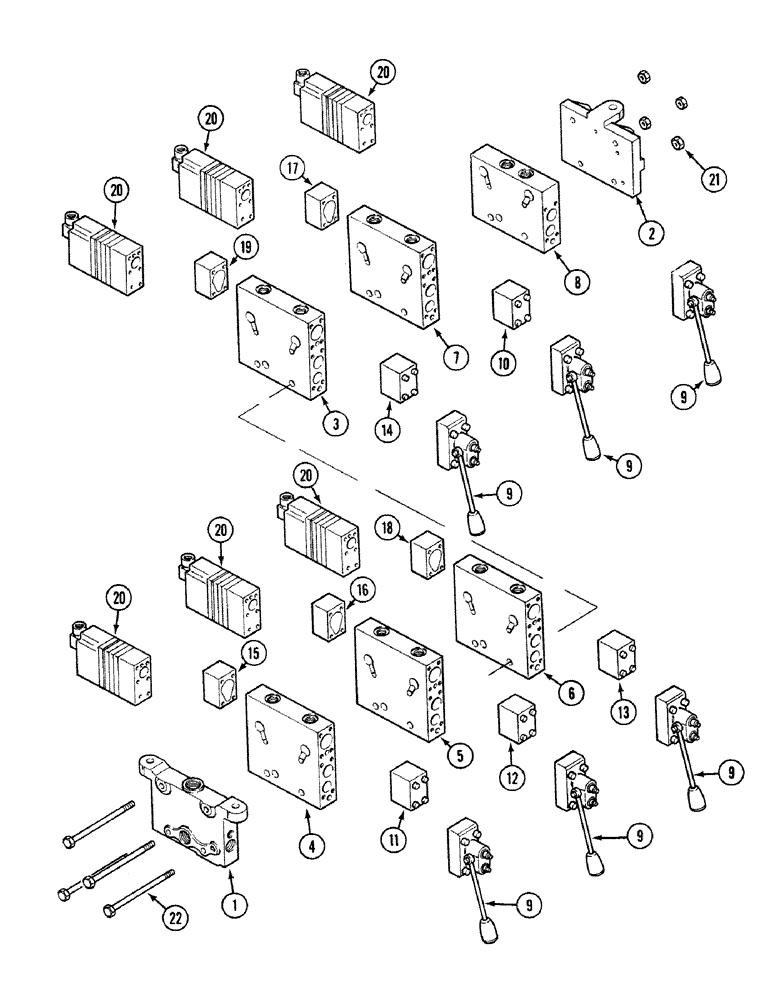

Запчасти Case 580SK (8-232) - VALVE CONTROL BANK (PVG60), UP TO S/N JJH0046381, PRESTIGE VERSION (08) - HYDRAULICS

E47748

VALVE, CONTROL

ASSY Consists of : 1 - 22

1шт.

1

E48794

LARGE PLATE

PLATE, LARGE VALVE Side See Figure 8-238

1шт.

2

E48795

LARGE PLATE

PLATE, LARGE

1шт.

3

E48796

LARGE PLATE

PLATE, LARGE VALVE Boom See Figure 8-240

1шт.

4

E48796

LARGE PLATE

PLATE, LARGE VALVE Backhoe See Figure 8-240

1шт.

5

E48796

LARGE PLATE

PLATE, LARGE VALVE Dipper See Figure 8-240

1шт.

6

E48797

LARGE PLATE

PLATE, LARGE VALVE Swing See Figure 8-240

1шт.

7

E48798

LARGE PLATE

PLATE, LARGE VALVE Loader See Figure 8-240

1шт.

8

E48799

LARGE PLATE

PLATE, LARGE VALVE Loader See Figure 8-240

1шт.

9

E48800

CONTROL

LEVER See Figure 8-242

6шт.

10

E48550

PRESSURE LIMITER

VALVE Loader See Figure 8-246

1шт.

11

E48550

PRESSURE LIMITER

VALVE Backhoe See Figure 8-246

1шт.

12

E48550

PRESSURE LIMITER

VALVE Dipper See Figure 8-246

1шт.

13

E48551

PRESSURE LIMITER

VALVE Swing See Figure 8-246

1шт.

14

E48552

PRESSURE LIMITER

VALVE Boom See Figure 8-246

1шт.

15

E48553

PRESSURE LIMITER

VALVE Backhoe See Figure 8-246

1шт.

16

E48553

PRESSURE LIMITER

VALVE Dipper See Figure 8-246

1шт.

17

E48553

PRESSURE LIMITER

VALVE Loader See Figure 8-246

1шт.

18

E48554

PRESSURE LIMITER

VALVE Swing See Figure 8-246

1шт.

19

E48555

PRESSURE LIMITER

VALVE Boom See Figure 8-246

1шт.

20

128486A1

SOLENOID VALVE

Electric See Figure 8-244

6шт.

21

E48801

NUT

4шт.

22

E48802

TRUSS ROD

STUD

4шт.
