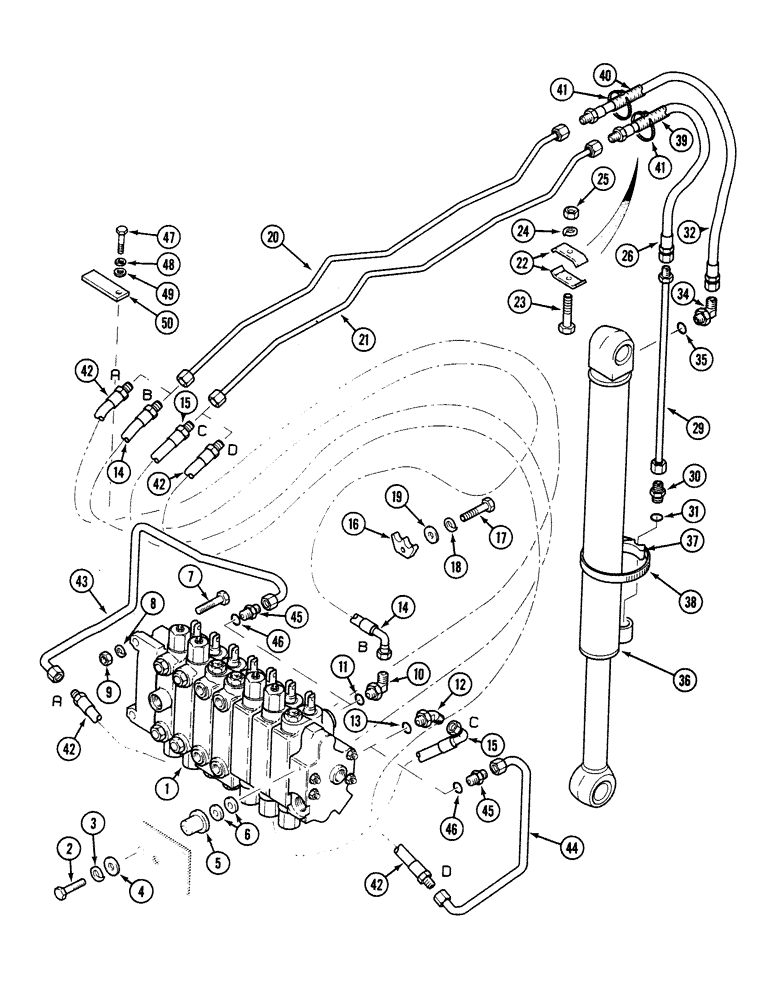

Запчасти Case 580SK (8-228) - HYDRAULIC CIRCUIT EXTENDABLE DIPPER, NOT FOR PRESTIGE, SIDESHIFT BACKHOE (08) - HYDRAULICS

1

VALVE ASSY See Figure 8-296

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

3/8"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

13/32"

2шт.

7

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 64 mm

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

With 11, Serial Range: -JJH0045480

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

, Serial Range: -JJH0045480

1шт.

12

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW 45 deg With : 13, Serial Range: -JJH0045480

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

, Serial Range: -JJH0045480

1шт.

14

E48339

HOSE

Upper, Serial Range: -JJH0045480

1шт.

15

E48340

HOSE

Lower

1шт.

16

112292A1

SHIN

CLAMP

1шт.

17

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

18

492-11031

LOCK WASHER,5/16"

1шт.

19

495-11034

WASHER,5/16", SAE

1шт.

20

E47978

PIPE

Left, Serial Range: -JJH0045480

1шт.

Version with Auxiliary Hydraulic

1шт.

20

E49596

PIPE

Left, Start Serial: JJH0045481

1шт.

Version with Auxiliary Hydraulic

1шт.

21

E47976

PIPE

Right, Serial Range: -JJH0045480

1шт.

Version with Auxiliary Hydraulic

1шт.

21

E49594

PIPE

Right, Start Serial: JJH0045481

1шт.

Version with Auxiliary Hydraulic

1шт.

22

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

23

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3/8 x 51 mm

1шт.

24

492-11038

LOCK WASHER,3/8"

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.

26

E48335

HOSE

, Serial Range: -JJH0015320

1шт.

26

D140708

HOSE,12.7mm ID x 850mm L, SAE 100R2

, Start Serial: JJH0015321

1шт.

29

D140706

PIPE

1шт.

30

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

With : 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

E48336

HOSE

, Serial Range: -JJH0015320

1шт.

32

D134095

HOSE,12.7mm ID x 700mm L, SAE 100R2

, Start Serial: JJH0015321

1шт.

34

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

With 35

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

36

1340969C1

CYLINDER ASSY.

See Figure 8-380

1шт.

37

D38648

BLOCK

INSULATOR Rubber

1шт.

38

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.

39

D134728

TUBE

SLEEVE

1шт.

40

D134729

SLEEVE

1шт.

41

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

42

E49979

HOSE

, Start Serial: JJH0045481

2шт.

43

E55040

PIPE

, Start Serial: JJH0045481

1шт.

44

E55034

PIPE

, Start Serial: JJH0045481

1шт.

45

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

with 46, Start Serial: JJH0045481

2шт.

46

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

, Start Serial: JJH0045481

2шт.

47

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

48

495-11034

WASHER,5/16", SAE

1шт.

49

492-11031

LOCK WASHER,5/16"

1шт.

50

112292A1

SHIN

CLAMP

1шт.
