(8-226) - HYDRAULIC CIRCUIT, EXTENDABLE CYLINDER, SERVOPOWER, S/N JJH0046382 AND UP

Запчасти Case 580SK (8-226) - HYDRAULIC CIRCUIT, EXTENDABLE CYLINDER, SERVOPOWER, S/N JJH0046382 AND UP (08) - HYDRAULICS

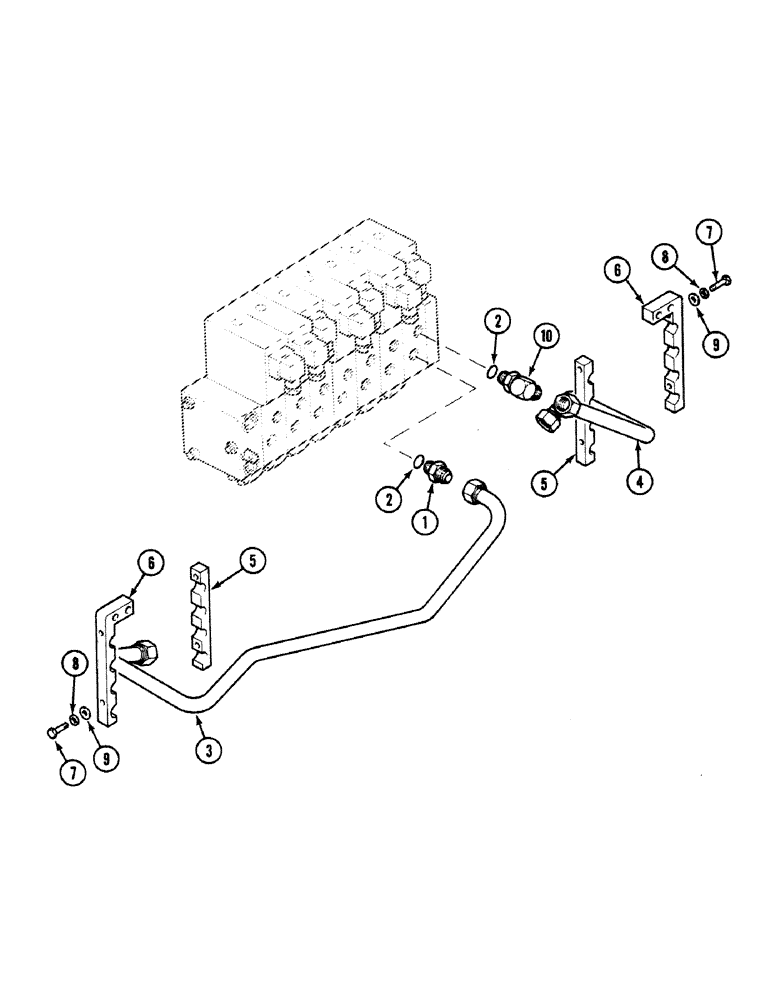

Схема запчастей Case 580SK - (8-226) - HYDRAULIC CIRCUIT, EXTENDABLE CYLINDER, SERVOPOWER, S/N JJH0046382 AND UP (08) - HYDRAULICS
1
2
6
7
2
5
6
9
8
10
5
9
4
3
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

With 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

111006A1

PIPE

1шт.

4

111010A1

PIPE

, Serial Range: -JJH0047171

1шт.

4

129093A1

PIPE

, Start Serial: JJH0047172

1шт.

5

120233A1

SHIN

CLAMP

2шт.

6

120232A1

SHIN

CLAMP

2шт.

7

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

495-21044

WASHER,3/8"

4шт.

10

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ELBOW With : 2

1шт.
