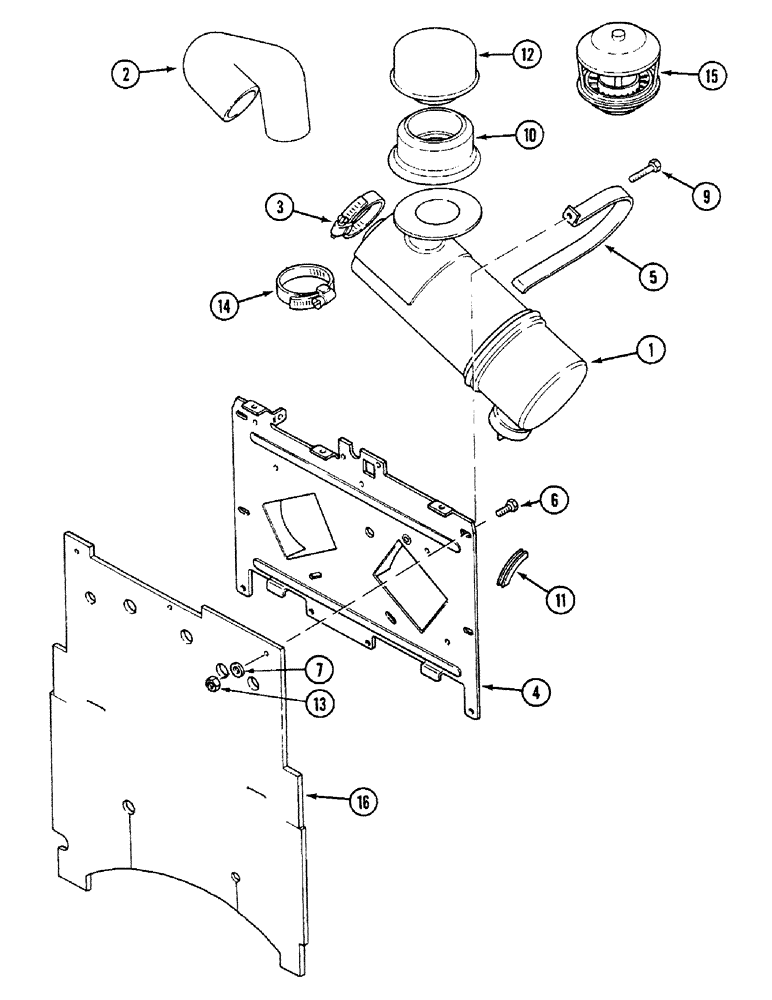

Запчасти Case 580SK (2-06) - AIR CLEANER AND AIR INTAKE (02) - ENGINE

1

A184107

AIR CLEANER

See Figure : 2-10

1шт.

2

E49699

LARGE HOSE

HOSE,LARGE

1шт.

3

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

1/4"

1шт.

4

D140712

SUPPORT

BRACKET

1шт.

5

D129158

STRAP

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

7

495-11034

WASHER,5/16", SAE

3шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

10

A189360

SEAL

1шт.

11

D43403

LINING

SEAL

2шт.

12

A61277

CAP

1шт.

13

231-1445

NUT,5/16"-18, GB

3шт.

14

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

1шт.

15

A24391

AIR CLEANER

See Figure : 2-12

1шт.

16

140929A1

PROTECTOR

PAD

1шт.
