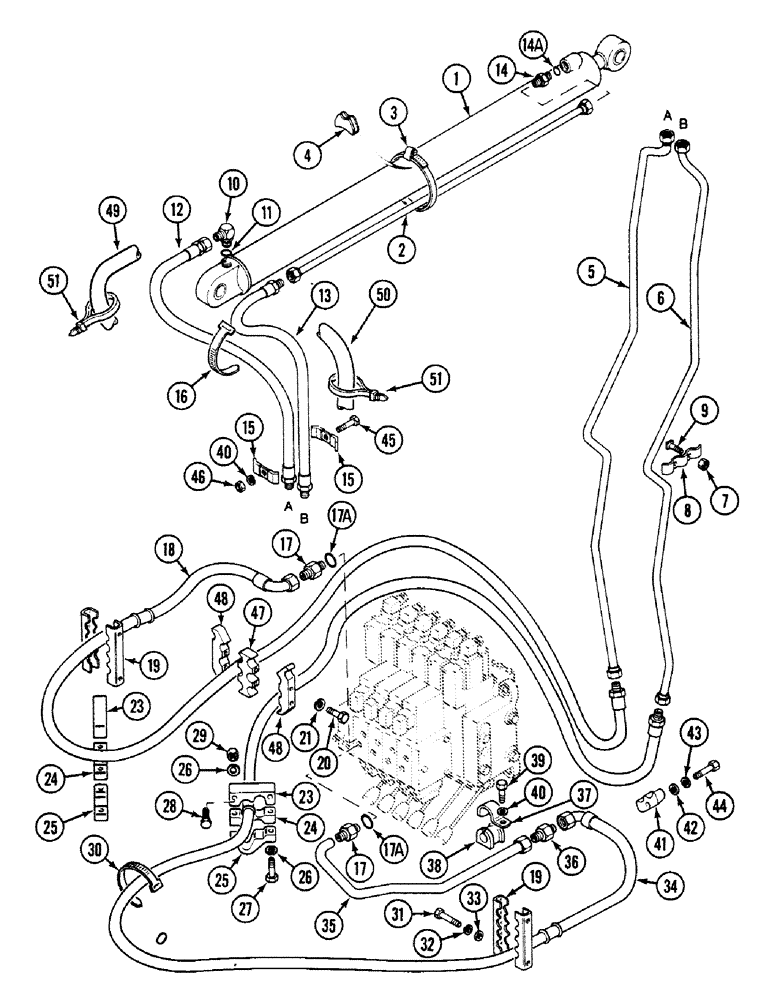

Запчасти Case 580SK (8-222) - SIDESHIFT BACKHOE EXTENDABLE DIPPER, PRESTIGE VERSION (08) - HYDRAULICS

1

1340969C1

CYLINDER ASSY.

See Figure 8-380

1шт.

2

D140706

PIPE

1шт.

3

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.

4

D38648

BLOCK

INSULATOR

1шт.

5

E47978

PIPE

1шт.

6

E47976

PIPE

1шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

D143421

CLAMP

4шт.

9

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

With 11

4шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

E48336

HOSE

, Serial Range: -JJH0015320

1шт.

12

D134095

HOSE,12.7mm ID x 700mm L, SAE 100R2

, Start Serial: JJH0015321

1шт.

13

E48335

HOSE

, Serial Range: -JJH0015320

1шт.

13

D140708

HOSE,12.7mm ID x 850mm L, SAE 100R2

, Start Serial: JJH0015321

1шт.

14

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER With : 14A

1шт.

14a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

4шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

17

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Adapter with 17A

2шт.

17a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

E48339

HOSE

Upper

1шт.

19

D92721

CLAMP

2шт.

20

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

21

492-11038

LOCK WASHER,3/8"

4шт.

23

D139536

SHIN

CLAMP, Serial Range: -JJH0013545

2шт.

24

D139537

CLAMP

2шт.

25

D139538

CLAMP

2шт.

26

492-11038

LOCK WASHER,3/8"

8шт.

27

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

, Serial Range: -JJH0013545

4шт.

27

413-634

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

3/8 x 55 mm, Start Serial: JJH0013546

4шт.

28

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

, Serial Range: -JJH0013545

4шт.

29

425-106

NUT,3/8"-16, Cl 5

4шт.

30

D140236

STRAP

1шт.

31

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

33

495-11053

WASHER,1/2", SAE

4шт.

34

E48340

HOSE

ASSY Lower, Serial Range: -JJH0013545

1шт.

34

E49634

HOSE

ASSY, Start Serial: JJH0013546

1шт.

35

E47621

PIPE ASSY.

, Serial Range: -JJH0013545

1шт.

35

E49635

HYD TUBE

, Start Serial: JJH0013546

1шт.

36

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR

1шт.

37

D74192

CLAMP

1шт.

38

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR

1шт.

39

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

40

492-11038

LOCK WASHER,3/8"

1шт.

41

112292A1

SHIN

CLAMP

1шт.

42

495-11034

WASHER,5/16", SAE

1шт.

43

492-11031

LOCK WASHER,5/16"

1шт.

44

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

45

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

46

425-106

NUT,3/8"-16, Cl 5

2шт.

47

D142471

SHIN

CLAMP

1шт.

48

D143513

SHIN

CLAMP

2шт.

49

D134728

TUBE

SLEEVE

1шт.

50

D134729

SLEEVE

1шт.

51

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.
