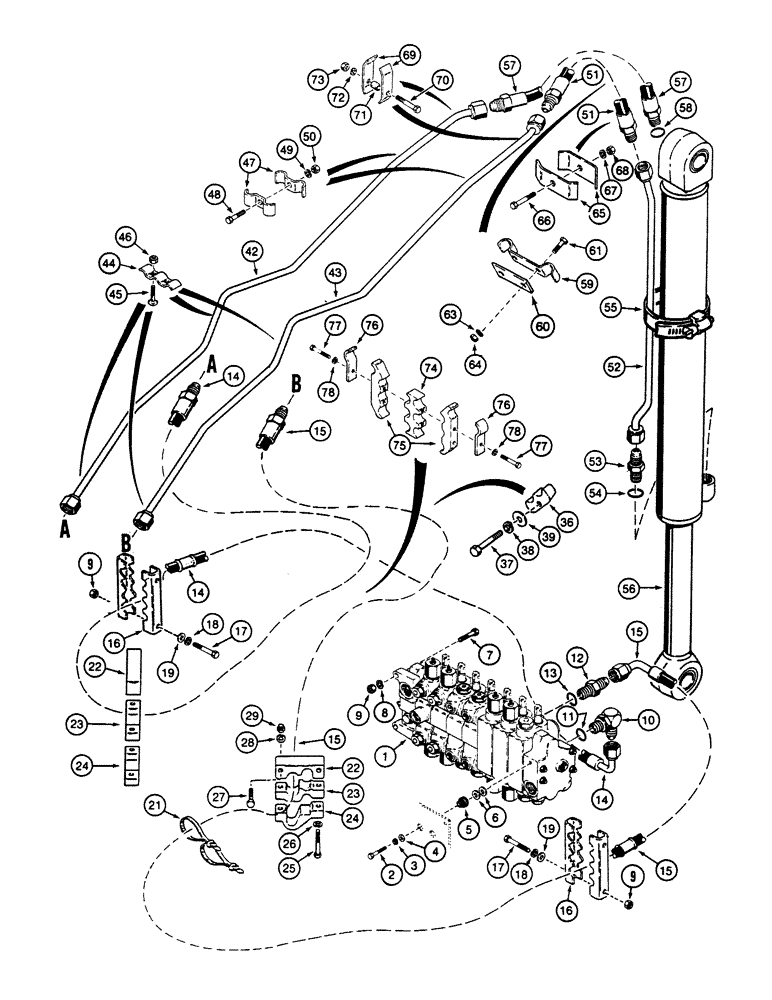

Запчасти Case 580SK (8-216) - CIRCUIT HYDRAULIC BUCKET CYLINDER, NOT FOR PRESTIGE, SIDESHIFT BACKHOE, W/ EXTENDABLE DIPPER (08) - HYDRAULICS

1

VALVE ASSY See Figures 8-294, 8-296

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

25/64"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

13/32"

2шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

6шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

With 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter with 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

E48338

HOSE

Upper

1шт.

15

E48337

HOSE

Lower

1шт.

16

D92721

CLAMP

2шт.

17

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

18

495-11053

WASHER,1/2", SAE

4шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

21

D140236

STRAP

8шт.

22

D139536

SHIN

CLAMP If Equipped

2шт.

23

D139537

CLAMP

2шт.

24

D139538

CLAMP

2шт.

25

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

26

492-11038

LOCK WASHER,3/8"

4шт.

27

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

If Equipped

4шт.

28

492-11038

LOCK WASHER,3/8"

4шт.

29

425-106

NUT,3/8"-16, Cl 5

4шт.

36

112292A1

SHIN

CLAMP

1шт.

37

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

38

492-11031

LOCK WASHER,5/16"

1шт.

39

495-11034

WASHER,5/16", SAE

1шт.

42

D138059

TUBE

Left

1шт.

43

D138057

TUBE

Right

1шт.

44

D127682

CLAMP

4шт.

45

417-616

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

3/8 x 51 mm

8шт.

46

425-106

NUT,3/8"-16, Cl 5

8шт.

47

D127681

CLAMP

4шт.

48

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

49

492-11038

LOCK WASHER,3/8"

2шт.

50

425-106

NUT,3/8"-16, Cl 5

2шт.

51

E49913

HOSE

, Serial Range: -JJH0047420

1шт.

51

134916A1

HYDRAULIC HOSE

, Start Serial: JJH0047421

1шт.

52

D141248

TUBE

1шт.

53

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter with 54

1шт.

54

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

55

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

56

1340991C1

CYLINDER ASSY.

See Figure 8-376, Serial Range: -JJH0014388

1шт.

56

235916A1R

REMAN-HYD CYLINDER

Reman New PN 1340991C1

1шт.

56

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

56

1542920C1

CYLINDER ASSY.

See Figure 8-378, Serial Range: JJH0014389-JJH0046190

1шт.

56

235916A1R

REMAN-HYD CYLINDER

Reman New PN 1542920C1

1шт.

56

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

56

110290A1

CYLINDER ASSY.

See Figure 8-378, Start Serial: JJH0046191

1шт.

56

235916A1R

REMAN-HYD CYLINDER

Reman New PN 110290A1

1шт.

56

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

57

E49914

HOSE

ASSY With : 58, Serial Range: -JJH0046190

1шт.

57

134915A1

HYDRAULIC HOSE

ASSY, Start Serial: JJH0046191

1шт.

58

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

59

D140221

CLAMP

1шт.

60

E55010

LARGE PLATE

PLATE, LARGE

1шт.

61

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8 x 38 mm

2шт.

63

492-11031

LOCK WASHER,5/16"

4шт.

64

425-106

NUT,3/8"-16, Cl 5

4шт.

65

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

66

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

67

492-11038

LOCK WASHER,3/8"

1шт.

68

425-106

NUT,3/8"-16, Cl 5

1шт.

69

D136678

CLAMP

4шт.

70

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

71

D76210

SPACER

2шт.

72

492-11038

LOCK WASHER,3/8"

2шт.

73

425-106

NUT,3/8"-16, Cl 5

2шт.

74

D142471

SHIN

CLAMP

1шт.

75

D143513

SHIN

CLAMP

2шт.

76

D143512

CLAMP

2шт.

77

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3/8 x 64 mm

4шт.

78

492-11031

LOCK WASHER,5/16"

4шт.
