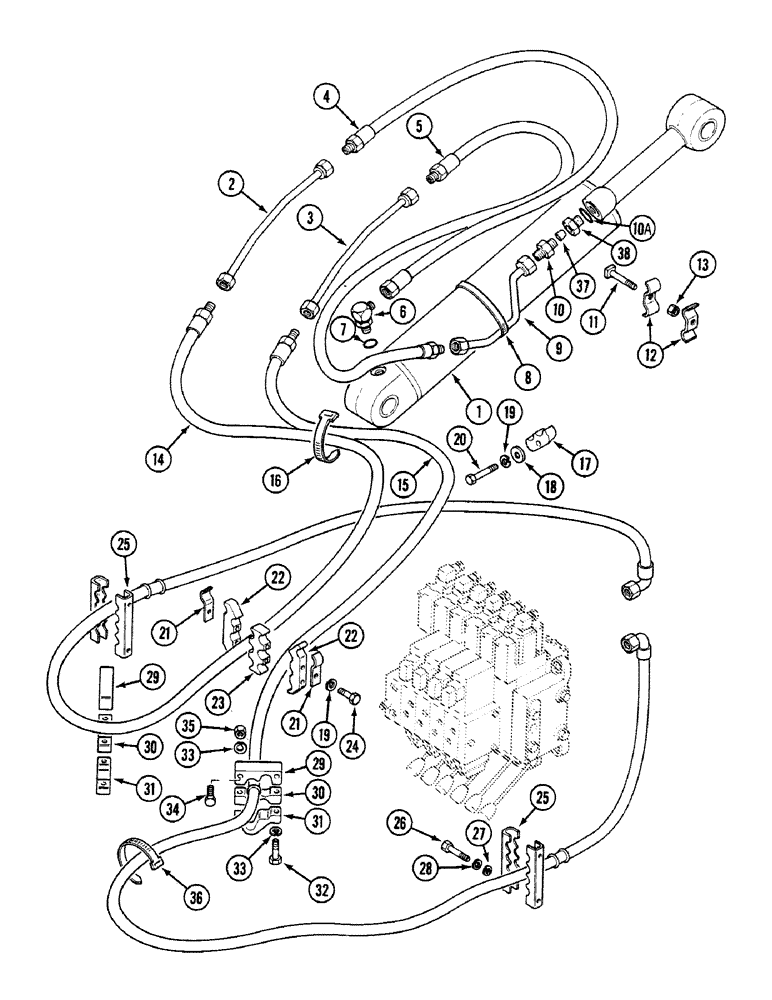

Запчасти Case 580SK (8-210) - HYDRAULIC CIRCUIT DIPPER CYLINDER, PRESTIGE VERSION, SIDESHIFT BACKHOE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1340984C1
CYLINDER ASSY.
See Figure 8-372, Serial Range: -JJH0014388
1шт.
1
1542912C1
CYLINDER ASSY.
See Figure 8-374, Serial Range: JJH0014389-JJH0046126
1шт.
1
110294A1
CYLINDER ASSY.,Double Acting, 63.5mm Rod, 580.4mm Stroke
See Figure 8-374, Start Serial: JJH0046127
1шт.
2
E55031
PIPE
Left
1шт.
3
E55032
PIPE
Right
1шт.
4
D140157
HOSE,15.88mm ID x 750mm L
750 mm
1шт.
5
D127687
HOSE,15.88mm ID x 400mm L
400 mm
1шт.
6
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
With 7
1шт.
7
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
8
214-1488
HOSE CLAMP,130.05mm - 152.4mm
1шт.
9
E48676
HYD TUBE
1шт.
10
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Adapter with 10A
1шт.
10a
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
11
417-616
BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2
3/8 x 25 mm
8шт.
12
D127681
CLAMP
16шт.
13
231-4116
NUT,3/8"-16, GB
3/8"
8шт.
14
E48343
HOSE
Upper
1шт.
15
E49608
HOSE
Lower
1шт.
16
L18331
CABLE TIE,375.9mm L, Nylon, Black
CABLE STRAP
1шт.
17
112292A1
SHIN
CLAMP
1шт.
18
495-11034
WASHER,5/16", SAE
2шт.
20
413-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
2шт.
21
D143512
CLAMP
2шт.
22
D143513
SHIN
CLAMP
2шт.
23
D142471
SHIN
CLAMP
1шт.
24
413-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
3/8 x 64 mm
4шт.
25
D92721
CLAMP
4шт.
26
413-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
4шт.
27
495-11053
WASHER,1/2", SAE
4шт.
28
80679
LOCK WASHER,1/20.507 CST ZND
4шт.
29
D139536
SHIN
CLAMP Upper
2шт.
30
D139537
CLAMP
Centre
2шт.
31
D139538
CLAMP
Lower
2шт.
32
413-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
4шт.
33
492-11038
LOCK WASHER,3/8"
12шт.
34
413-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
4шт.
35
425-106
NUT,3/8"-16, Cl 5
7шт.
36
D140236
STRAP
1шт.
37
E48672
DASHPOT
RESTRICTOR
1шт.
38
E48659
ADAPTER
1шт.
Выбрано товаров: 41
