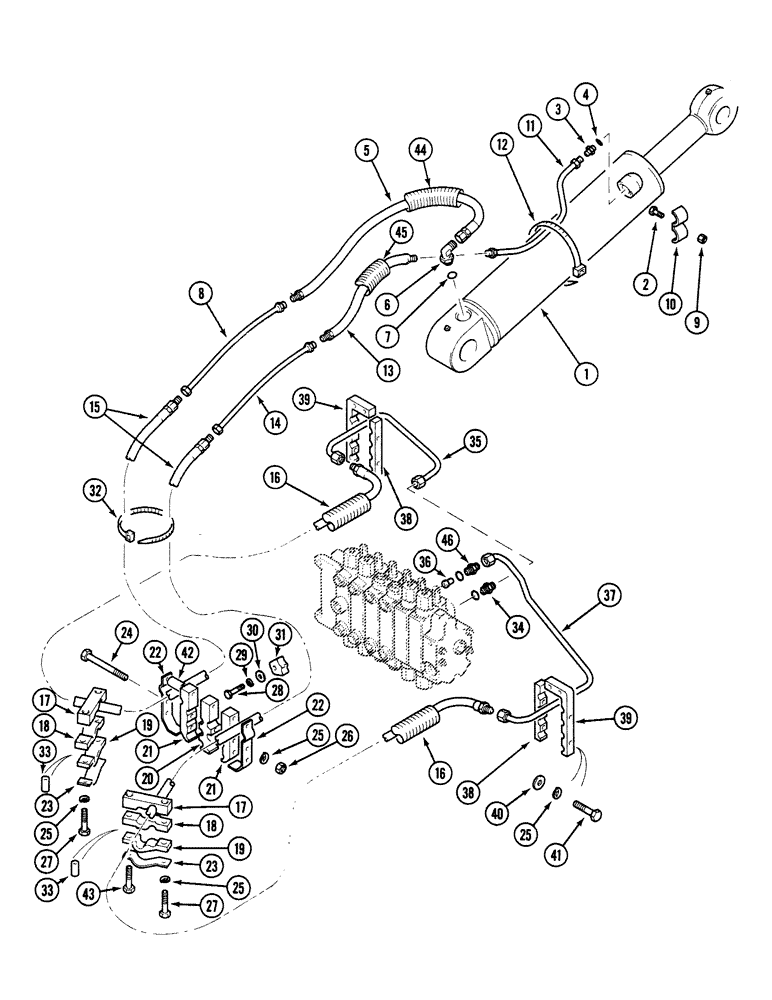

Запчасти Case 580SK (8-206) - HYDRAULIC CIRCUIT DIPPER CYLINDER, SIDESHIFT, NOT FOR PRESTIGE, S/N JJH0045481 AND UP (08) - HYDRAULICS

1

1542912C1

CYLINDER ASSY.

, Serial Range: JJH0045481-JJH0046126

1шт.

1

110294A1

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 580.4mm Stroke

, Start Serial: JJH00446127

1шт.

2

417-616

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

3/8 x 25 mm

8шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

D140157

HOSE,15.88mm ID x 750mm L

1шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

8

E55031

PIPE

1шт.

9

231-4116

NUT,3/8"-16, GB

3/8

8шт.

10

D127681

CLAMP

8шт.

11

D139898

PIPE

1шт.

12

214-1488

HOSE CLAMP,130.05mm - 152.4mm

1шт.

13

D127687

HOSE,15.88mm ID x 400mm L

1шт.

14

E55032

PIPE

1шт.

15

E49979

HOSE

2шт.

16

E49975

LOOM

SLEEVE

2шт.

17

120848A1

SHIN

CLAMP

2шт.

18

120849A1

SHIN

CLAMP

2шт.

19

120850A1

SHIN

CLAMP

2шт.

20

108271A1

SHIN

CLAMP, Serial Range: -JJH0047385

1шт.

20

130537A1

SHIN

CLAMP, Start Serial: JJH0047386

1шт.

21

108270A1

SHIN

CLAMP, Serial Range: -JJH0047385

2шт.

21

130536A1

SHIN

CLAMP, Start Serial: JJH0047386

2шт.

22

107993A1

SHIN

CLAMP, Serial Range: -JJH0047385

2шт.

22

130532A1

DECAL

CLAMP, Start Serial: JJH0047386

2шт.

23

120851A1

CLAMP

2шт.

24

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

3/8 x 138 mm

2шт.

25

492-11038

LOCK WASHER,3/8"

10шт.

26

425-106

NUT,3/8"-16, Cl 5

2шт.

27

413-634

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

3/8 x 51 mm

4шт.

28

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

29

492-11031

LOCK WASHER,5/16"

2шт.

30

495-11034

WASHER,5/16", SAE

2шт.

31

112292A1

SHIN

CLAMP

2шт.

32

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

33

120852A1

SPACER

4шт.

34

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1шт.

35

E55036

PIPE

1шт.

36

D142366

RESTRICTOR

UNION

1шт.

37

E55035

PIPE

1шт.

38

120232A1

SHIN

CLAMP

2шт.

39

120233A1

SHIN

CLAMP

2шт.

40

495-21044

WASHER,3/8"

4шт.

41

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

42

130441A1

SPACER

, Start Serial: JJH0047386

2шт.

43

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

44

143095A1

LOOM

SLEEVE

1шт.

45

143094A1

LOOM

SLEEVE

1шт.

46

123621A1

FITTING

CONNECTOR

1шт.
