Запчасти Case 580SK (8-202) - HYDRAULIC CIRCUIT DIPPER CYLINDER, NOT FOR PRESTIGE, SIDESHIFT BACKHOE, S/N JJH0045480 (08) - HYDRAULICS

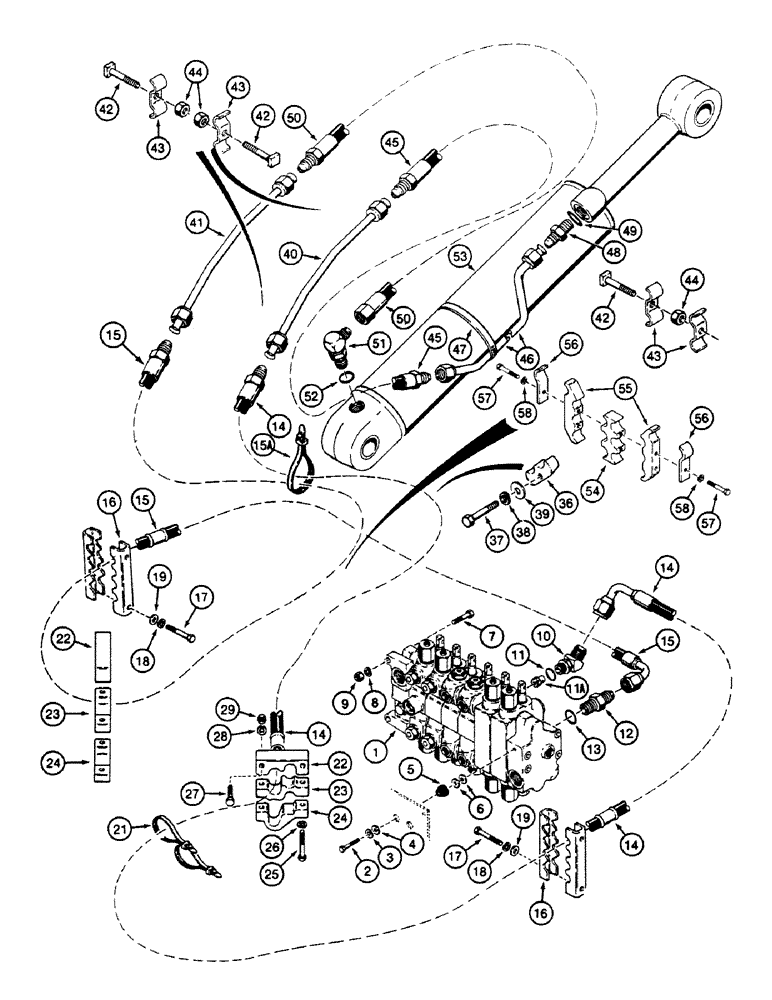

Схема запчастей Case 580SK - (8-202) - HYDRAULIC CIRCUIT DIPPER CYLINDER, NOT FOR PRESTIGE, SIDESHIFT BACKHOE, S/N JJH0045480 (08) - HYDRAULICS
36
51
15
19
41
14
18
48
18
17
11a
3
27
40
38
43
14
10
47
57
43
12
14
16
2
24
58
1
16
42
57
45
15
43
13
44
4
23
21
56
15a
8
55
25
52
42
24
46
58
44
5
42
23
37
15
14
56
26
17
39
7
45
28
49
50
53
29
50
11
22
54
22
6
9
19

Артикул

Название

Примечание

Количество

1

VALVE ASSY See Figure 8-296

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

3/8"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

13/32"

2шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW 45 deg With : 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11a

D142366

RESTRICTOR

Upper

1шт.

12

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter with 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

E48219

HOSE

Upper

1шт.

14

E48342

HOSE

SAEJ1177 Upper

1шт.

15

E48218

HOSE

Lower

1шт.

15

E48343

HOSE

SAEJ1177 Lower

1шт.

15a

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

16

D92721

CLAMP

2шт.

17

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

18

495-11053

WASHER,1/2", SAE

4шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

21

D140236

STRAP

8шт.

22

D139536

SHIN

CLAMP

2шт.

23

D139537

CLAMP

2шт.

24

D139538

CLAMP

2шт.

25

413-634

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

3/8 x 54 mm

4шт.

26

492-11038

LOCK WASHER,3/8"

4шт.

27

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

28

492-11038

LOCK WASHER,3/8"

4шт.

29

425-106

NUT,3/8"-16, Cl 5

4шт.

36

112292A1

SHIN

CLAMP

2шт.

37

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

38

492-11031

LOCK WASHER,5/16"

2шт.

39

495-11034

WASHER,5/16", SAE

2шт.

40

E55032

PIPE

Right

1шт.

41

E55031

PIPE

Left

1шт.

42

417-616

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

3/8 x 25 mm

4шт.

43

D127681

CLAMP

4шт.

44

231-4116

NUT,3/8"-16, GB

3/8"

4шт.

45

E48342

HOSE

400 mm

1шт.

46

D139898

PIPE

1шт.

47

214-1488

HOSE CLAMP,130.05mm - 152.4mm

1шт.

48

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter with 49

1шт.

49

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

50

D140157

HOSE,15.88mm ID x 750mm L

750 mm

1шт.

51

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

With 52

1шт.

52

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

53

1340984C1

CYLINDER ASSY.

See Figure 8-372, Serial Range: -JJH0014388

1шт.

53

1542912C1

CYLINDER ASSY.

See Figure 8-374, Serial Range: JJH0014389-JJH0046126

1шт.

53

110294A1

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 580.4mm Stroke

See Figure 8-374, Start Serial: JJH0046127

1шт.

54

D142471

SHIN

CLAMP

1шт.

55

D143513

SHIN

CLAMP

2шт.

56

D143512

CLAMP

2шт.

57

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3/8 x 64 mm

4шт.

58

492-11031

LOCK WASHER,5/16"

4шт.

Выбрано товаров: 57
