(8-200) - HYDRAULIC CIRCUIT, BUCKET CYLINDER, SERVOPOWER VERSION, S/N JJH0046382 AND UP

Запчасти Case 580SK (8-200) - HYDRAULIC CIRCUIT, BUCKET CYLINDER, SERVOPOWER VERSION, S/N JJH0046382 AND UP (08) - HYDRAULICS

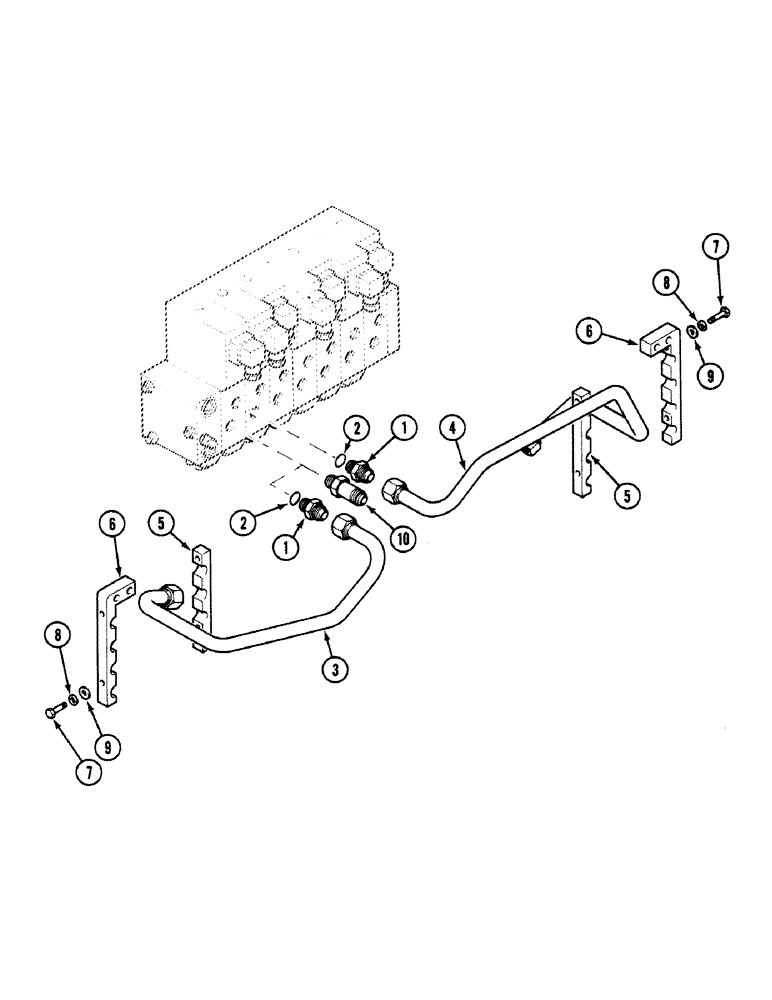

Схема запчастей Case 580SK - (8-200) - HYDRAULIC CIRCUIT, BUCKET CYLINDER, SERVOPOWER VERSION, S/N JJH0046382 AND UP (08) - HYDRAULICS
9
4
9
7
2
10
8
3
8
1
6
1
7
5
2
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

With 2, Serial Range: -JJH0047171

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

111007A1

PIPE

, Serial Range: -JJH0047171

1шт.

3

129553A1

PIPE

, Start Serial: JJH0047172

1шт.

4

111011A1

PIPE

1шт.

5

120233A1

SHIN

CLAMP

2шт.

6

120232A1

SHIN

CLAMP

2шт.

7

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

495-21044

WASHER,3/8"

4шт.

10

129550A1

FITTING

CONNECTOR, Start Serial: JJH0047172

1шт.
