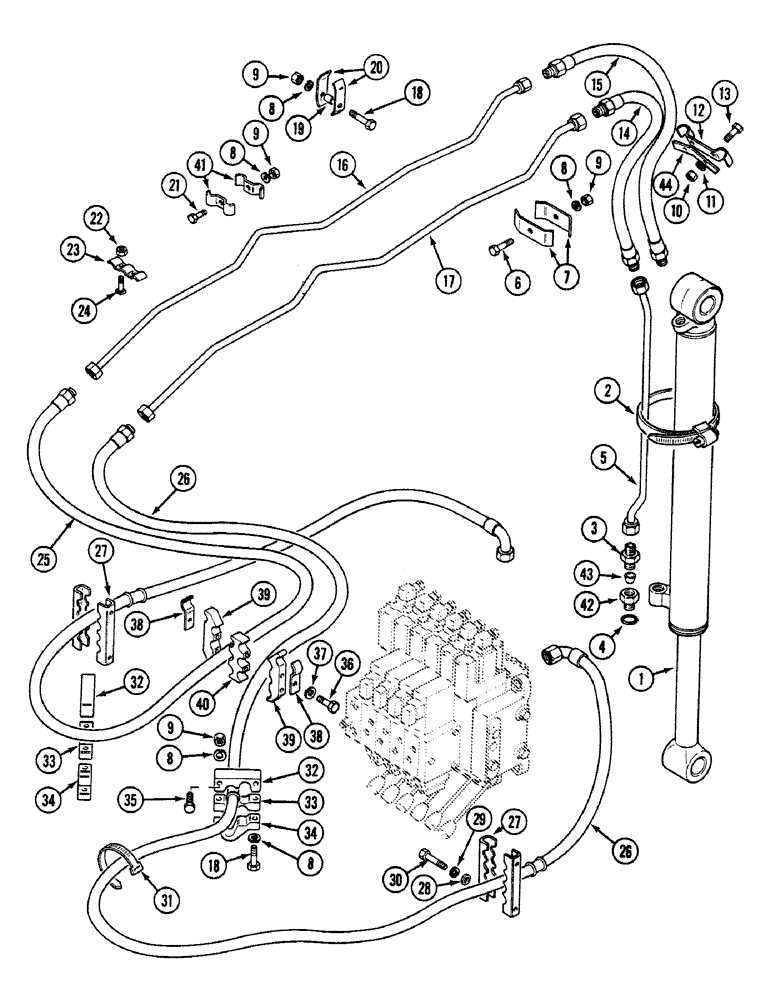

Запчасти Case 580SK (8-196) - HYDRAULIC CIRCUIT, BUCKET CYLINDER, PRESTIGE VERSION, SIDESHIFT BACKHOE (08) - HYDRAULICS

1

1340991C1

CYLINDER ASSY.

See Figure 8-376, Serial Range: -JJH0014399

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN 1340991C1

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

1542920C1

CYLINDER ASSY.

See Figure 8-378, Serial Range: JJH0014400-JJH0046190

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN 1542920C1

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

110290A1

CYLINDER ASSY.

See Figure 8-378, Start Serial: JJH0046191

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN 110290A1

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter with 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

E48677

HYD TUBE

1шт.

6

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

7

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

8

492-11038

LOCK WASHER,3/8"

9шт.

9

425-106

NUT,3/8"-16, Cl 5

9шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

D140221

CLAMP

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

14

E49913

HOSE

, Serial Range: -JJH0047420

1шт.

14

134916A1

HYDRAULIC HOSE

, Start Serial: JJH0047421

1шт.

15

E49914

HOSE

, Serial Range: -JJH0047420

1шт.

15

134915A1

HYDRAULIC HOSE

, Start Serial: JJH0047421

1шт.

16

D138059

TUBE

Left

1шт.

17

D138057

TUBE

Right

1шт.

18

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3/8 x 64 mm

6шт.

19

D76210

SPACER

2шт.

20

D136678

CLAMP

4шт.

21

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

22

231-4116

NUT,3/8"-16, GB

3/8"

4шт.

23

D127682

CLAMP

4шт.

24

417-616

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

3/8 x 25 mm

8шт.

25

E48220

HOSE

ASSY Upper

1шт.

26

E49920

HOSE

Lower

1шт.

27

D92721

CLAMP

4шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

29

495-11053

WASHER,1/2", SAE

4шт.

30

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

31

D140236

STRAP

1шт.

32

D139536

SHIN

CLAMP Upper

2шт.

33

D139537

CLAMP

Centre

2шт.

34

D139538

CLAMP

Lower

2шт.

35

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

36

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

37

492-11038

LOCK WASHER,3/8"

1шт.

38

D143512

CLAMP

2шт.

39

D143513

SHIN

CLAMP

2шт.

40

D142471

SHIN

CLAMP

1шт.

41

D127681

CLAMP

4шт.

42

E48659

ADAPTER

1шт.

43

E48672

DASHPOT

RESTRICTOR

1шт.

44

E55010

LARGE PLATE

PLATE, LARGE

1шт.
